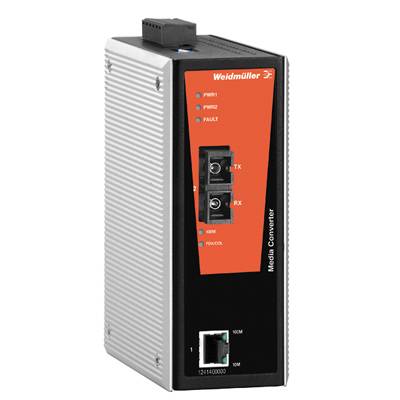

Weidmüller 1241400000 IE-MC-VL-1TX-1SC Industrial Ethernet switch 10 / 100 MBit/s
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Industrial Ethernet media converter
- Metal housing
Technical specifications
- Product type
Industrial Ethernet switch
- LAN transfer rate
10 MBit/s
100 MBit/s
- Transfer rate
10 / 100 MBit/s
- Working principle
Unmanaged switch
- Ethernet ports
1
- 10/100 Mbps ports
1 x
- Fibre-optic ports
2
- Port type
RJ45
- Auto-uplink at each port
Yes
- Power supply (LOV)
via terminal
- Weight
954 g
- Width
53.6 mm
- Height
135 mm
- Depth
105 mm
- Type
IE-MC-VL-1TX-1SC
- Interfaces
LAN (10/100 Mbps)
IP30
- Factory colour
Orange
Silver
- Operating voltage
24 V DC
- Current consumption
0.16 A
- Max. ambient temperature
85 °C
- Min. ambient temperature
-40 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 201918 Weidmüller 1241400000 IE-MC-VL-1TX-1SC Industrial Ethernet switch 10 / 100 MBit/s
User & Safety Instructions
User & Safety Instructions 201918 Weidmüller 1241400000 IE-MC-VL-1TX-1SC Industrial Ethernet switch 10 / 100 MBit/s
Description
10/100BaseT(X) auto-negotiation and auto-MDI/MDIX · Link Fault pass-through (LFP) · Warning in the event of a power failure and Port error · Redundant power supply inputs · -40 to 75° operating temperature (T-models) · Designed for hazardous areas (Class 1 div. 2/Atex Zone 2).
