Buy Weidmüller 1251580005 RJ45 Patch cable CAT 6A S/FTP 0.50 m Yellow UL-approved 1 pc(s)

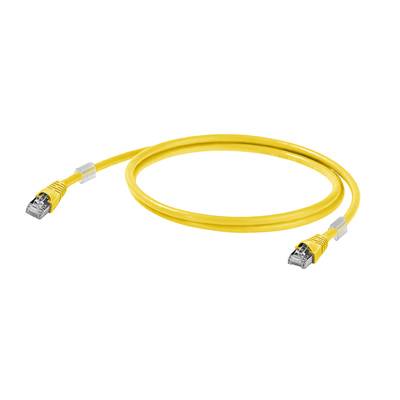

Yellow Ethernet cable with RJ45 connectors at both ends, used for network connections.

Product type

Patch cable

Specification

CAT 6A

Shielding

S/FTP

Connection type

RJ45

Cable length

0.50 m

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Belkin CAT5e S/UTP Patch cable

IE-C6 FP8 LY0005 M40 M40-Y

Technical specifications

Deviation 25 ns/100m
Arrangement of wires: Twisted pair
Number of wires: 8
Operating voltage: 48 V AC/DC
Operating voltage (UL rating): 30 V AC / 42.4 V DC
Operating temperature: -20°C to +60°C
Bending radius, min., repeated: 50 mm
Bending radius, min., once: 25 mm
Color sequence wires - wire pairs: White - blue, white - orange, white - green, white - brown
Overall shield: Shielding braid made of copper wires
Speed: 10 GBit/s
Insulation diameter 1.04 mm
Capacity at 1 kHz: 46 nF/km.
Contact surface: AU ≥ 0.8 µm
Coupling attenuation up to 1000 MHz: 80 dB
Coupling resistance at 10 MHz: 5 mΩ/m.
Copper diameter 0.43 mm
Strands: 7
Sheath diameter, max. 5.9 mm
Net weight 36 g
Shielding damping up to 1000 MHz: 60 dB
Current carrying capacity at 50 °C: 1 A.
Test voltage wire-wire shield 750 V DC, 1 min.
Material sheath: LSZH

Product type: Patch cable

: CAT 6A

: S/FTP

Connection type: RJ45

No. of A connectors: 1 x

Type A: RJ45 plug

No. of B connections: 1 x

Type B: RJ45 plug

Cable length: 0.50 m

Factory colour: Yellow

Connector version: straight

Cable features: UL-approved

: 27/7

Cable use: Networks

Version: Cable

Cable design: Round

: Copper

Max. frequency: 500 MHz

LAN transfer rate: 100 MBit/s
1000 MBit/s
2500 MBit/s
10000 MBit/s

Halogen-free: Yes

Design type: S/UTP

: S/FTP

: 0.5 m

: Yellow

: IP20

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 201976 Weidmüller 1251580005 RJ45 Patch cable CAT 6A S/FTP 0.50 m Yellow UL-approved 1 pc(s)

User & Safety Instructions

User & Safety Instructions 201976 Weidmüller 1251580005 RJ45 Patch cable CAT 6A S/FTP 0.50 m Yellow UL-approved 1 pc(s)

Description

The RJ45-Cable Fast Cat 5e offers more volume than the standard CAT5e cable and is perfect for use in 5 to 10 Base-T Networks and Giga bite Ethernet in the area. Delivery includes RJ45 plug (plug to plug) and the moulded strain relief.
