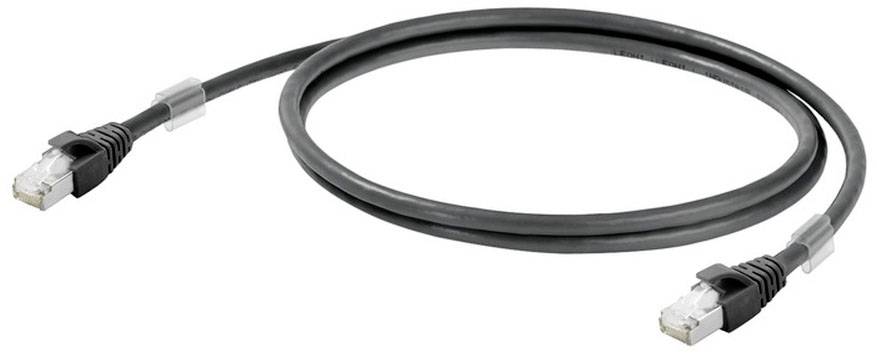

Image similar

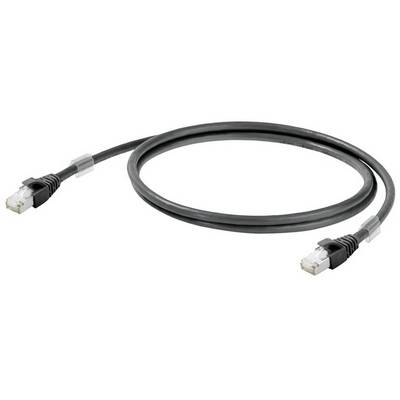

Image similar
Weidmüller 1251610080 RJ45 Patch cable CAT 6A S/FTP 8.00 m Black Flame-retardant 1 pc(s)
EAN:
Part number:
Item no:
Product type
Patch cable
Specification
CAT 6A
Shielding
S/FTP
Connection type
RJ45
Cable length
8.00 m
Technical specifications
- Net weight: 295 g
- Insulation diameter: 1.04 mm
- Operating temperature: -20 °C - +60 °C
- Storage temperature: -20 °C - +60 °C
- Insertion temperature: 0 °C - +50 °C
- Operating voltage (UL rating): 30 V AC / 42.4 V DC
- Test voltage Wire-wire shield: 750 V/DC, 1 min
- characteristic impedance: 100 ± 15 Ω at 1-100 MHz
- Deviation: 25 ns/100m
- Resistance difference: 5 %
- strands: 7
- arrangement Cores: Twisted pair
- color sequence Cores - wire pairs: White - blue, white - orange, white - green, white - brown
- Overall shield braid of copper wires
- Overcovering Shield braid: 60 %
- material Sheath: LSZH
- sheath diameter, min.: 5.5 mm
- sheath diameter, max.: 5.9 mm
- bending radius, min.: 1. 25 mm
- bending radius min, repeated: 50 mm
- Capacity at 1 kHz: 46 nF/km
- Isolation: PE
- Number of wires: 8
- Operating voltage: 48 V AC/DC
- current carrying capacity at 50 °C: 1 A
- Copper diameter: 0.43 mm
- Contact surface: AU> 0.8 µm
- Product type
Patch cable
CAT 6A
S/FTP
- Connection type
RJ45
- No. of A connectors
1 x
- Type A
RJ45 plug
- No. of B connections
1 x
- Type B
RJ45 plug
- Cable length
8.00 m
- Factory colour
Black
- Cable features
Flame-retardant
27/7
- Cable use
Networks
- Version
Cable
Copper
- Max. frequency
500 MHz
- LAN transfer rate
100 MBit/s
1000 MBit/s
2500 MBit/s
10000 MBit/s
- Halogen-free
Yes
- UKCA
yes
