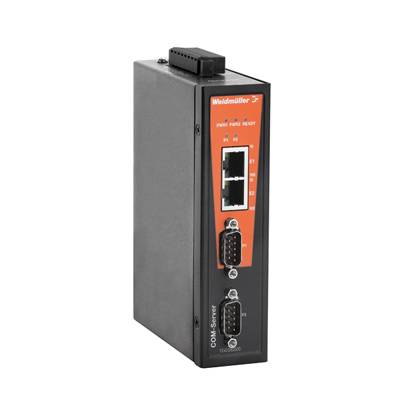

Weidmüller 1285840000 IE-CST-2TX-2RS232/485 Industrial Ethernet switch
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Serial/Ethernet converter
- Metal housing
Technical specifications
- Product type
Industrial Ethernet switch
- Working principle
Unmanaged switch
- Ethernet ports
2
- 10/100 Mbps ports
2 x
- RS232 console ports
2 x
- Port type
RJ45
- Power supply (LOV)
via terminal
- Weight
485 g
- Width
36 mm
- Height
140 mm
- Depth
105 mm
- Type
IE-CST-2TX-2RS232/485
- Interfaces
RJ45
IP30
- Factory colour
Orange
Silver
- Operating voltage
12 V DC
24 V DC
48 V DC
- Current consumption
0,250 A
- Max. ambient temperature
85 °C
- Min. ambient temperature
-40 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 202236 Weidmüller 1285840000 IE-CST-2TX-2RS232/485 Industrial Ethernet switch
User & Safety Instructions
User & Safety Instructions 202236 Weidmüller 1285840000 IE-CST-2TX-2RS232/485 Industrial Ethernet switch
Description
Improved surge protection for the serial, LAN and supply connection · Robust screw terminal blocks for supply and serial connector · Cascaded Ethernet ports for simple wiring · Redundant DC power supply inputs · Warning via relay output and E-Mail · Low power consumption.
