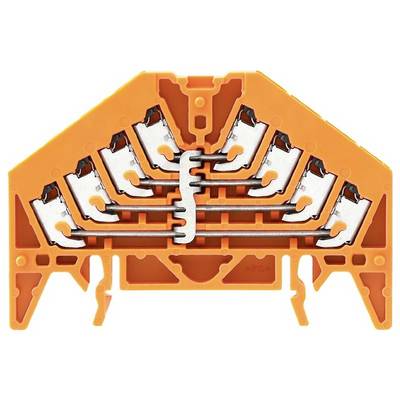

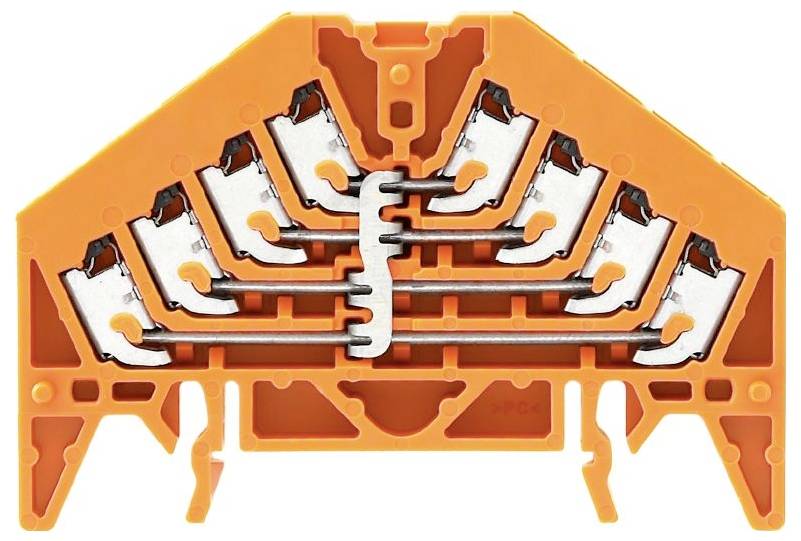

Weidmüller 1301630000 Distribution block Push-in connector, Jack connector Orange 20 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Distribution block
Connection
Push-in connector
Jack connector
Cross section (flexible) (max.)
1.5 mm²
Cross section (inflexible) (max.)
1.5 mm²
Datasheet (PDF)
Highlights & Details
Potential Distribution
- PPV 4 OR 35X7.5 DGR
Our service for you
Technical specifications
- Packaging type
Piece
- Product type
Distribution block
- Features
+ push-in spring bracket
- Connection
Push-in connector
Jack connector
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
1.5 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
1.5 mm²
- No. of rows
4
- Number of pins
16
- Factory colour
Orange
- Manufacturer part #
1301630000
- Content
20 pc(s)
- Industrial packaging
Yes
- Type
PPV 4 OR 35X7.5 DGR
- Dim
(L x W x H) 70 x 9.2 x 47 mm
- Width
9.2 mm
- Height
47 mm
- Length
70 mm
- RoHS-compliant
Yes
- Weight
50.24 g
- Connector colour
Orange
- Type
PPV 4 or 35X7.5 DGR
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 321078 Weidmüller 1301630000 Distribution block Push-in connector, Jack connector Orange 20 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 321078 Weidmüller 1301630000 Distribution block Push-in connector, Jack connector Orange 20 pc(s) Piece
Description
Potential distribution. P series, rated cross-section: 1.5 mm ², Number of floors: 4, number of connections: 16, color: orange. The multi-level terminal blocks with push-in connection technology realize space-saving connections. The product portfolio consists of 4, 8 and the innovative 16-way continuity series terminals. The 4 and 8-way terminal blocks are also available as a potential distribution terminal blocks. Advantages: over 1700 signals per meter can be distributed with the 16-way terminal block, red and white actuation elements make the assignment of conductors for clamping point. PUSH-IN connection technology supports the quick and convenient wiring.
