Weidmüller 1305330000 Continuity 5.10 mm Screws Beige 50 pc(s)
EAN:
Part number:
Item no:
Product type
Continuity
Connection
Screws
Cross section (flexible) (max.)
2.50 mm²
Cross section (inflexible) (max.)
2.50 mm²
Nominal current - rounded value
27 A
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 0.87 / piece)
€ 43.69
plus VAT.
14-day return policy included
Highlights & Details

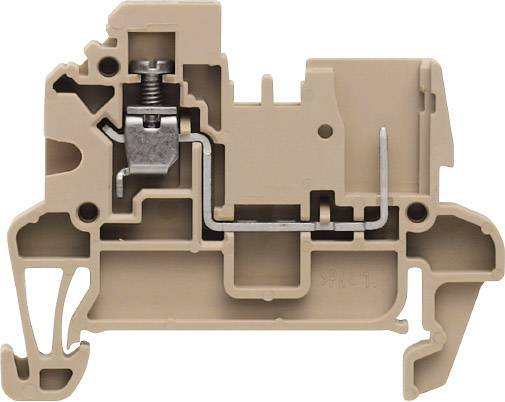

Feed-through terminal
- WT 2.5
Our service for you
Technical specifications
- Product type
Continuity
- Connection
Screws
- Cross section (flexible) (min.)
0.50 mm²
- Cross section (flexible) (max.)
2.50 mm²
- Cross section (inflexible) (min.)
0.50 mm²
- Cross section (inflexible) (max.)
2.50 mm²
- AWG (min.)
26
- AWG max.
12
- Clamp width
5.10 mm
- No. of rows
1
- Pins per row
1
- Number of pins
1
- Factory colour
Beige
- Nominal current
27 A
- Nominal current - rounded value
27 A
- Nominal voltage
500 V
- Stripping length (max.)
7 mm
- Manufacturer part #
1305330000
- Content
50 pc(s)
- Type
WT 2.5
- Dim
(L x W x H) 40 x 5.10 x 50.50 mm
- Width
5.10 mm
- Height
50.50 mm
- Length
40 mm
- RoHS-compliant
Yes
- Flammability rating
V0
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1694415 Weidmüller 1305330000 Continuity 5.10 mm Screws Beige 50 pc(s)
User & Safety Instructions
User & Safety Instructions 1694415 Weidmüller 1305330000 Continuity 5.10 mm Screws Beige 50 pc(s)
Description
Terminal for connection or connection of wires, wires and cables with permanently secure contact. Hardened steel for the mechanical forces and high-quality copper with tin coating provides for best conductivity.
