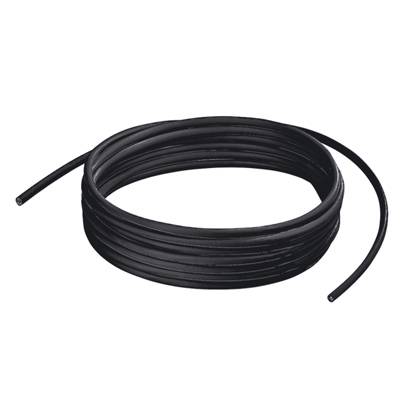

Weidmüller 1344690000 Network cable CAT 7 S/FTP Black 305 m
EAN:
Part number:
Item no:
Product type
Network cable
Specification
CAT 7
Shielding
S/FTP
Cable type
S/FTP
No. of leads
8 x
Datasheet (PDF)
Highlights & Details
System cable
- IE-C7FS8 LE-305 M
Technical specifications
- Net weight: 12240 g
- Insulation diameter: 1.04 mm
- Test voltage Wire-to-wire shield: 750 V DC, 1 min
- Deviation: 25 ns/100m
- Copper diameter: 0.43 mm
- conductor material: Bare copper conductor
- strands: 7
- overall shield: Braided shield made of copper wires
- Overcovering Shield braid: 60 %
- Material: LSZH
- sheath diameter, min.: 5.5 mm
- bending radius, min., single sheath: 25 mm
- repeated: 50 mm
- Product type
Network cable
CAT 7
S/FTP
- Cable type
S/FTP
- No. of leads
8 x
- Cable features
Halogen-free
UL-approved
Flame-retardant
Common shield
- Outside Ø
5.9 mm
- Factory colour
Black
- Content
305 m
- AWG max.
27
- Packaged
Yes
- Manufacturer part #
1344690000
- Type
IE-C7FS8LE-305M
- Insulation material
PE
- Min. temperature range (flexible installation)
-20 °C
- Max. temperature range (flexible installation)
+60 °C
- Min. temperature range (fixed installation)
-20 °C
- Max. temperature range (fixed installation)
+60 °C
- Halogen-free
Yes
- Max. length sold by the metre
305 m
- Twisted pair cabling (part 1)
Yes (1)
Documents & Downloads
Datasheet
Datasheet 202730 Weidmüller 1344690000 Network cable CAT 7 S/FTP Black 305 m
User & Safety Instructions
User & Safety Instructions 202730 Weidmüller 1344690000 Network cable CAT 7 S/FTP Black 305 m
Description
The system cable. Cat 7 (ISO/IEC 11801), LSZH, 305 m. Copper cable, rigid, 4 x 2 x AWG23/1, Cat 7, green.
This text is machine translated.
This text is machine translated.
