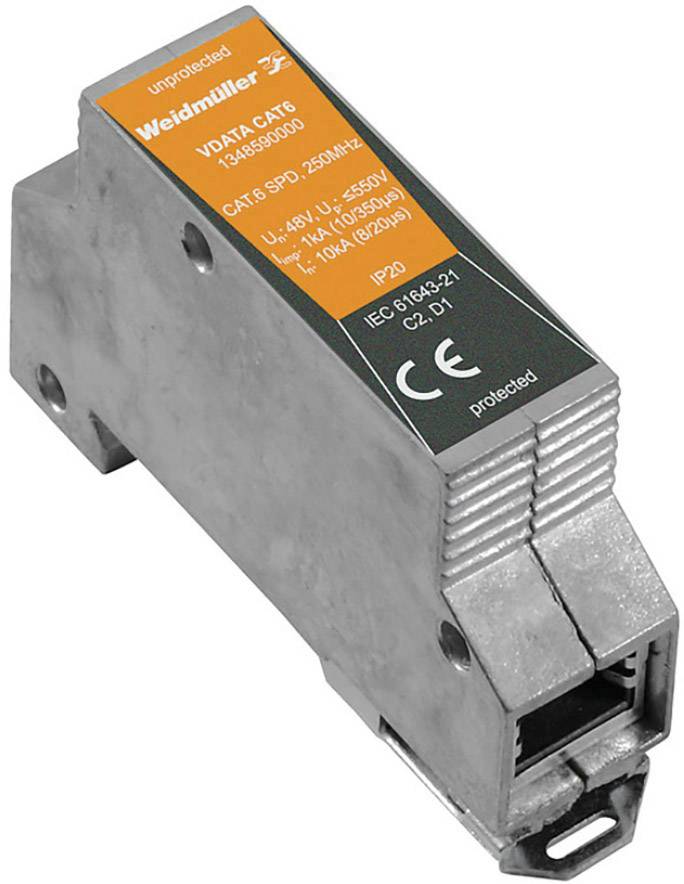

Weidmüller 1348590000 VDATA CAT6 Surge arrester 5 kA 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Connection type: RJ45 port
- Design: Adapter plug, other
- Forward resistance< 0.1 Ω
- Insertion loss: ≤ 1 dB at 250 MHz
- Frequency range, max. 250 MHz
- Maximum continuous voltage, UC (AC) 48 V.
- Storage temperature -40 °C to 85 °C.
- Conductor connection technology: RJ45 port
- Nominal current IN 1 A.
- Net weight 137 g
- Protection level UP (type.): ≤ 550 V
- Surge current strength C2: 10 kA
- Surge current strength D1: 1 kA 10/350 μs
- Mounting rail TS 35 x 15, TS 35 x 7.5
- Over voltage category III
- Pollution level 3
- Product type
Surge arrester
- Leakage current
5 kA
- Nominal voltage
48 V AC
- Pick-up time (details)
<1 ns
- Operating temperature
-40 °C Up to +80 °C
IP20
- Manufacturer part #
1348590000
- Factory colour
Silver-grey
- Standards
IEC61643-21 (or equivalent)
- Dim
(W x H x D) 19 x 75 x 46 mm
- Width
19 mm
- Height
75 mm
- Depth
46 mm
- Content
1 pc(s)
DIN rail (top hat rail) 35 mm
250-250 MHz
FALSE
IP20
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1948863 Weidmüller 1348590000 VDATA CAT6 Surge arrester 5 kA 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1948863 Weidmüller 1348590000 VDATA CAT6 Surge arrester 5 kA 1 pc(s)
Description
Surge protection VDATA CAT 6 for RJ45 plug.
