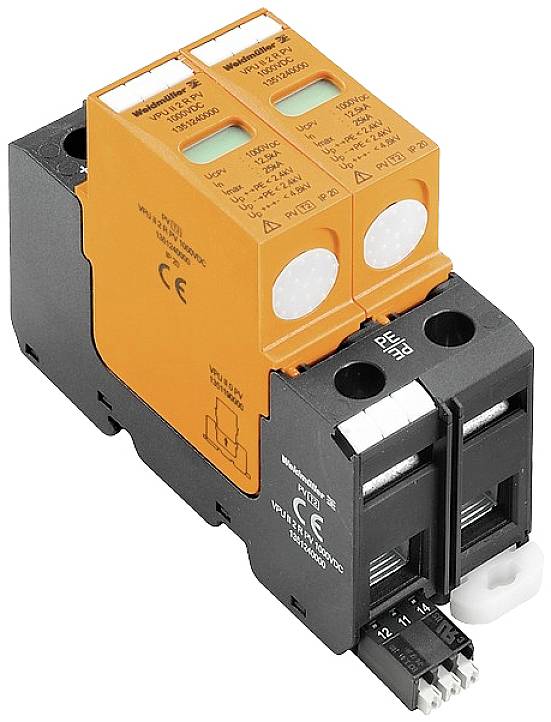

Weidmüller 1351240000 VPU II 2 R PV 1000V DC Surge arrester (plug-in) 12.5 kA 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Wire stripping length: 8 mm
- Wire stripping length, measuring connection 15 mm
- Connection type: Push-IN
- Tightening torque, max.: 3 Nm
- Tightening torque, min.: 2 Nm
- Design: Installation housing; 2 TE, Insta IP20
- Mounting dimensions height 75 mm
- Clamping range, max. 35 mm²
- Clamping range, min. 1.5 mm²
- Short-circuit resistance ISCPV 200 A.
- Storage temperature -40 °C to 80 °C.
- Conductor cross-section, single-wire, max. 1.5 mm²
- Conductor cross-section, fine strand, max. 25 mm²
- Conductor cross-section, multi-strand, max. 50 mm²
- Net weight 288 g
- Optical function display: Green = OK, red = arrester defective, replace
- Mounting rail TS 35
- Over voltage category III
- Pollution level 3
- Product type
Surge arrester (plug-in)
- Leakage current
12.5 kA
- Nominal voltage
1000 V
- Operating temperature
-40 °C to +70 °C °C
IP20
- Manufacturer part #
1351240000
- Type
Type II
- Factory colour
Black
Orange
- Standards
EN 50539-11
- Dim
(W x H x D) 35.6 x 106 x 69 mm
- Width
35.6 mm
- Height
106 mm
- Depth
69 mm
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1951513 Weidmüller 1351240000 VPU II 2 R PV 1000V DC Surge arrester (plug-in) 12.5 kA 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1951513 Weidmüller 1351240000 VPU II 2 R PV 1000V DC Surge arrester (plug-in) 12.5 kA 1 pc(s)
Description
The varitector overvoltage protection of the series VPU PV I (type I) and II (Type II) protects VPU PV photovoltaic systems and their components effectively against interference injections by lightning and overvoltages, even well below the limits according to EN 60664-3 by the insulation coordination/DIN VDE 0110-3 specified. In this way, the infrastructure as well as converter systems from overvoltage protected and the plant availability is increased.
The arresters are after the product standard IEC 50539-11/DIN EN 50539-11 tested and in the plant according to the standards IEC 50539-12/DIN EN 50539-12 application, as well as according to IEC 60364-7-712 build of photovoltaic supply systems must be installed.
This text is machine translated.
The arresters are after the product standard IEC 50539-11/DIN EN 50539-11 tested and in the plant according to the standards IEC 50539-12/DIN EN 50539-12 application, as well as according to IEC 60364-7-712 build of photovoltaic supply systems must be installed.
This text is machine translated.
