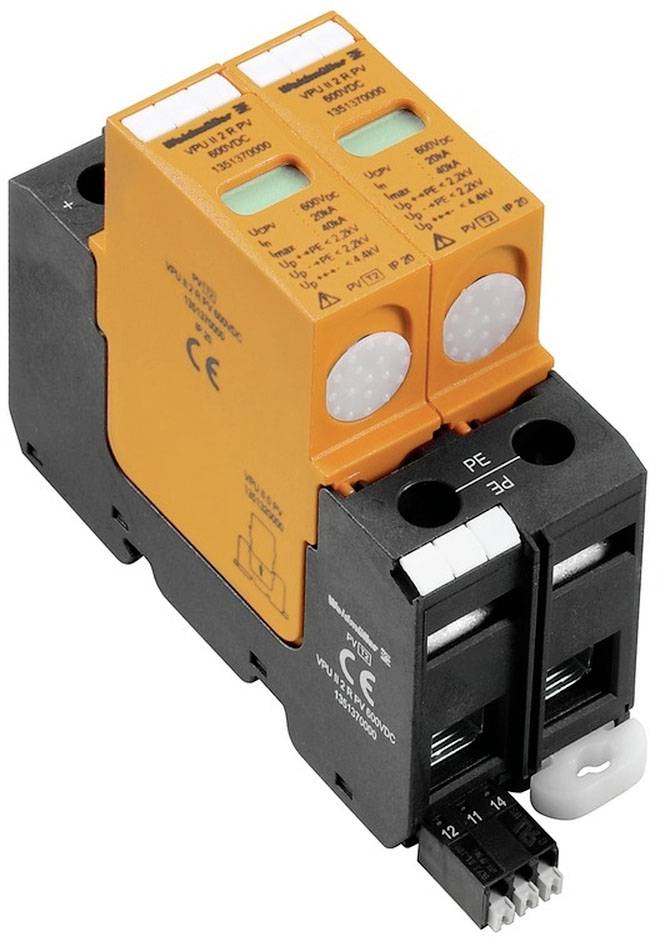

Weidmüller 1351370000 VPU II 2 R PV 600V DC Surge arrester 25 kA 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Net weight: 0,304 g
- Storage temperature: -40 °C to +80 °C.
- Design: Installation housing; 2 TE, Insta IP20
- Flammability class V-0
- Pollution level: 2
- Over voltage category III
- Connection type: PUSH-IN
- Optical function display: Green = OK, red = arrester defective, replace
- Mounting rail TS 35
- Wire stripping length, measuring connection 15 mm
- Tightening torque, min.: 2 Nm
- Tightening torque, max.: 3 Nm
- Clamping range, rated connection 16 mm²
- Clamping range, min. 1.5 mm²
- Clamping range, max. 35 mm²
- Conductor cross-section, single-wire, min. 0.14 mm²
- Conductor cross-section, single-wire, max. 1.5 mm²
- Conductor cross-section, fine strand, min. 1.5 mm²
- Conductor cross-section, fine strand, max. 25 mm²
- Conductor cross-section, multi-strand, min. 1.5 mm²
- Conductor cross-section, multi-strand, max. 50 mm²
- Stripped length: 8 mm
- Product type
Surge arrester
- Leakage current
25 kA
- Operating temperature
-40 °C to +70 °C °C
IP20
- Manufacturer part #
1351370000
- Type
VPU II 2 R PV 600V DC
- Factory colour
Black
Orange
- Dim
(W x H x D) 35.6 x 106 x 69 mm
- Width
35.6 mm
- Height
106 mm
- Depth
69 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
- UKCA
yes
