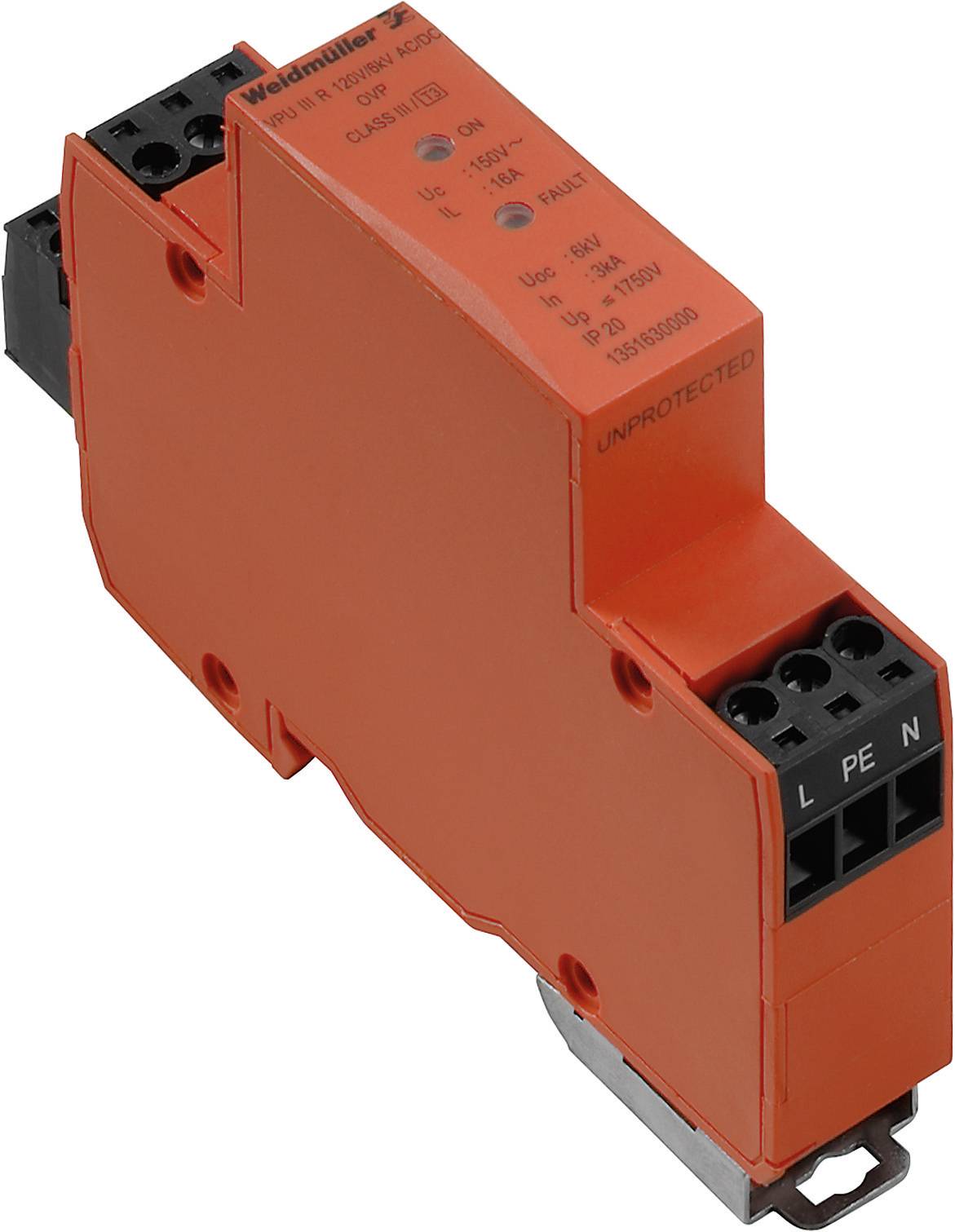

Weidmüller 1351630000 VPU III R 120V/6kV Surge arrester Surge protection for: Switchboards 3 kA 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Overvoltage protection
- PU III R 120 V/6 kV
Technical specifications
- Wire stripping length: 5 mm
- Wire stripping length rated connection 7 mm
- Connection type: screw terminals.
- Tightening torque, max. 0.5 Nm
- Tightening torque, min.: 0.4 Nm
- Design: Installation housing; 1 TE, Insta IP20
- Maximum continuous voltage, UC (AC) 150 V.
- Highest continuous voltage, UC (DC) 212 V.
- Clamping range, max. 2.5 mm²
- Clamping range, min. 0.5 mm²
- Short circuit resistance ISCCR 1.5 kA
- Storage temperature -40 °C to 70 °C.
- Conductor cross-section, single-wire, max. 1.5 mm²
- Conductor cross-section, fine strand, max. 2.5 mm²
- Conductor cross-section, multi-strand, max. 2.5 mm²
- Nominal current IN 16 A.
- Net weight 85 g
- Optical function display: LED green OK, LED red = arrester defective, replace
- Number of poles: 1
- Protection level UP (typ.)< 700 V
- Mounting rail TS 35
- Overvoltage category II
- Pollution level 3
- Product type
Surge arrester
- Surge protection for
Switchboards
- Leakage current
3 kA
- Nominal voltage
120 V AC
150 V DC
- Pick-up time (details)
≤ 100 ns
- Operating temperature
-5 °C to +40 °C
IP20
- Manufacturer part #
1351630000
- Type
PU III R 120 V/6 kV
- Factory colour
Orange
- Dim
(W x H x D) 18 x 102 x 71.5 mm
- Width
18 mm
- Height
102 mm
- Depth
71.5 mm
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 258522 Weidmüller 1351630000 VPU III R 120V/6kV Surge arrester Surge protection for: Switchboards 3 kA 1 pc(s)
User & Safety Instructions
User & Safety Instructions 258522 Weidmüller 1351630000 VPU III R 120V/6kV Surge arrester Surge protection for: Switchboards 3 kA 1 pc(s)
Description
Surge protection. Compact Type III arrester for AC/DC protection according to IEC61643-11:2012. Suitable for protection of terminals. Place of installation in the vicinity of the device to be protected. >For nominal currents 16 A can be used as a one-port arrester.
