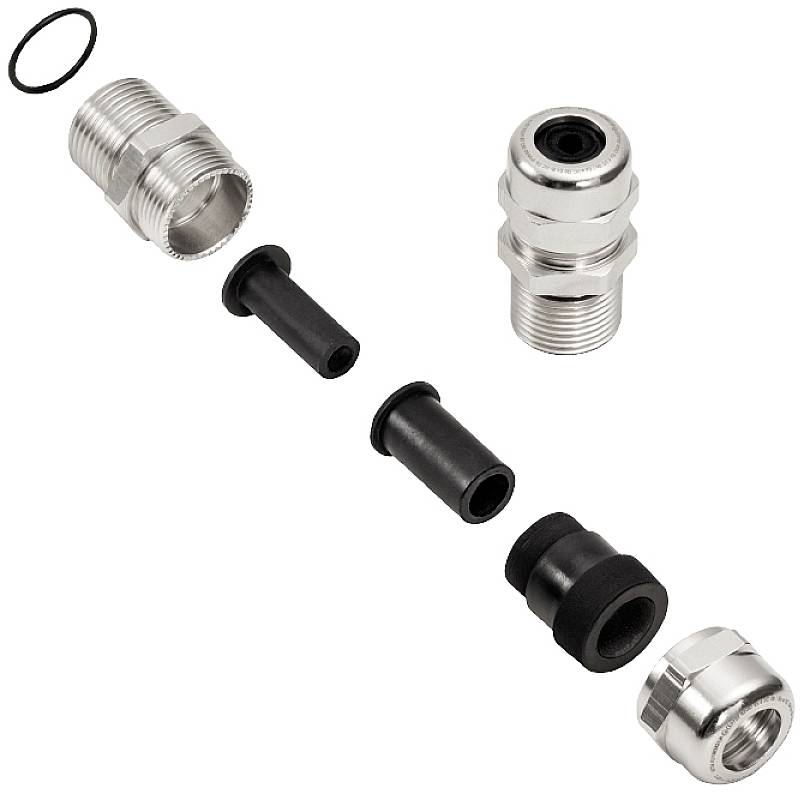

Weidmüller 1460090000 Cable gland M40 Brass 10 pc(s)
EAN:
Part number:
Item no:
Product type
Cable gland
External thread
M40
Material
Brass
Clamp Ø
22 mm
Terminal Ø (max.)
32 mm
Datasheet (PDF)
Highlights & Details
Our service for you
Technical specifications
- Thread pitch: 1.5 mm
- Seal insert: CR
- O-ring: NBR
- Terminal insert: Neoprene
- Product type
Cable gland
- External thread
M40
- Material
Brass
- Clamp Ø
22 mm
- Terminal Ø (max.)
32 mm
- Thread length
18 mm
- Length
59 mm
- Min. temperature
-40 °C
- Max. temperature
+100 °C
IP66
IP68
- Spanner size
45 mm
- Weight
220 g
- Content
10 pc(s)
- RoHS-compliant
Yes
- Manufacturer part #
1460090000
- Type
VG M40 EXE MS
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1913169 Weidmüller 1460090000 Cable gland M40 Brass 10 pc(s)
User & Safety Instructions
User & Safety Instructions 1913169 Weidmüller 1460090000 Cable gland M40 Brass 10 pc(s)
