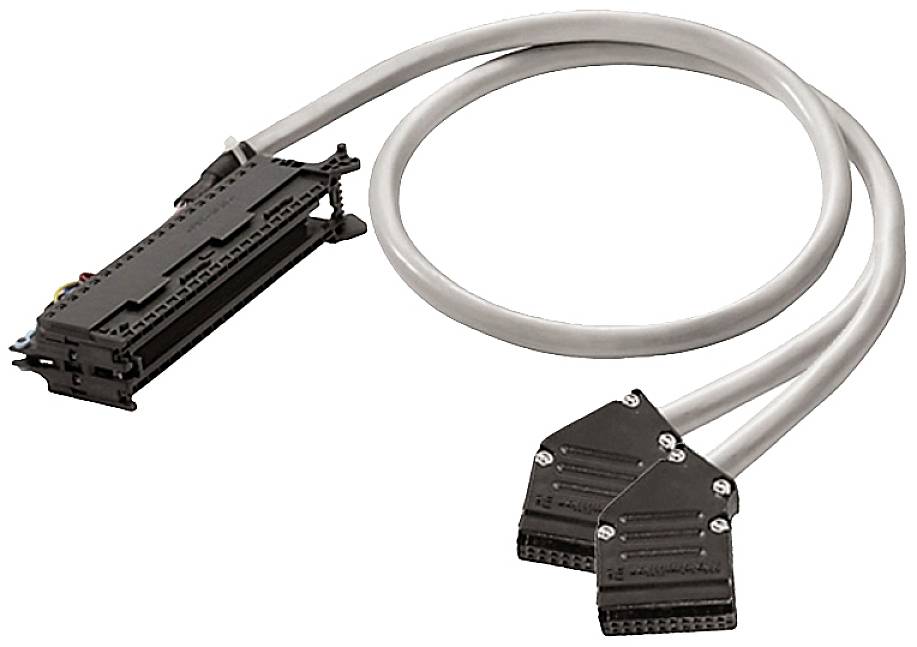

Weidmüller 1462040100 PAC-S1500-HE20-V0-10M PLC cable
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 2.114 g
- Storage temperature, max.: 60 °C
- Storage temperature, min.: -10 °C
- Connection SPS: Siemens S71500 6ES7592-1AM00-0XB0 40P
- Connection Interface: 2x CONTTOR CABLE PLANO HE10 20P
- Number of poles, min.: 20 Pole
- Outer diameter: 8.6 ± 1 mm
- Cable: LiYY Material
- : PVC
- conductor cross-section: 0.25 mm²
- Permissible current per path, max.: 1 A
- total current, max. 3 A
- resistance: ≤ 80 mΩ/m
- High voltage test: 1 KV/1s
- Product type
PLC cable
- Operating voltage
60, 25 V DC, V AC (max)
- Max. operating voltage
60 V DC
25 V AC
- Length
10 m
- Manufacturer part #
1462040100
- Type
PAC-S1500-HE20-V0-10M
- Max. ambient temperature
+50 °C
- Min. ambient temperature
-10 °C
- Series
S7-1500
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1949780 Weidmüller 1462040100 PAC-S1500-HE20-V0-10M PLC cable
User & Safety Instructions
User & Safety Instructions 1949780 Weidmüller 1462040100 PAC-S1500-HE20-V0-10M PLC cable
Description
Pre-assembled PAC cables for electrical and logical connections between PLC and PLC interfaces.
These cables consist of the following components:
• Factory-Side PLC connection
• Multi-Pin LIYY or LY CY cable (shielded) with
0.14 mm² or 0.25 mm² cable cross-section.
• Flat cable plug (SUB-D or RSV) for
Interface connection.
This text is machine translated.
These cables consist of the following components:
• Factory-Side PLC connection
• Multi-Pin LIYY or LY CY cable (shielded) with
0.14 mm² or 0.25 mm² cable cross-section.
• Flat cable plug (SUB-D or RSV) for
Interface connection.
This text is machine translated.
