Buy Weidmüller 1469530000 Rail mounted PSU (DIN) 24 V DC 5 A 120 W No. of outputs:1 x Content 1 pc(s)

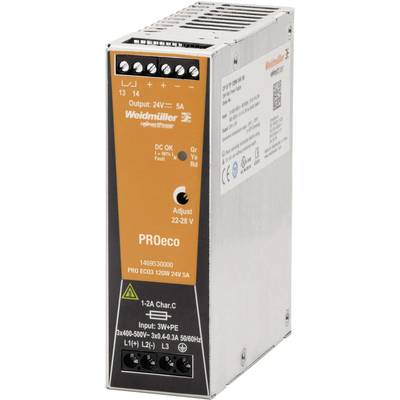

Power Supply 'Weidmüller PROeco', Model 1469530000, Input: 3x400-500V, Output: 24V 5A, LED Status Indicators, Compact Design.

Diagram shows: Performance (y-axis) remains at 100% up to 50°C, drops to 80% from 60°C. X-axis: Ambient temperature (°C), ≤ 480 watts.

Circuit diagram shows alternating current (AC) and direct current (DC) connections. Top left: L(+), N(-), PE. Right: +, -, 13, 14. Note: 'Pay attention to polarity of DC connection'.

1/3

Datasheet (PDF)

Fast track dispatch on Tue, 6 Oct

30 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 130.24 / piece)

€ 130.24

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Switched-mode power supplies PROeco 120W 24V 5A

Technical specifications

Nominal input voltage: 400 - 500 V/AC

Product type: Rail mounted PSU (DIN)

Min. input voltage: 320 V AC

Output voltage: 24 V DC

Input voltage (max.): 575 V AC

Max. output current: 5 A

Output current (max.) - rounded: 5 A

: 120 W

Output type (power supply units): Adjustable

Phases: 3

Output voltage (nominal): 24 V DC

No. of outputs: 1 x

Connection: Screw terminal

Dim: (L x W x H) 100 x 40 x 125 mm

Weight: 600 g

Output voltage (max.): 28 V DC

Output voltage (min.): 22 V DC

Operating temperature (max.): +70 °C

Max. operating temperature (derating): +70 °C

Min. operating temperature (derating): -25 °C

Operating temperature (min.): -25 °C

Manufacturer part #: 1469530000

Content: 1 pc(s)

PSU features: Regulated

Width: 40 mm

Height: 125 mm

Length: 100 mm

Max. temperature: +85 °C

Min. temperature: -40 °C

Type: PRO ECO3 120W 24V 5A

Efficiency: 87 %

: 40

: 125 mm

: 100 mm

: 225 mm

: 137.9 W

: 100 mm

: FALSE

: FALSE

: AC/DC

: Screw connection

: TRUE

: IP20

: None

: None

UKCA: not relevant

Variants(All information is without VAT, plus shipping costs)

Power

Connection

Input voltage (max.)

Output voltage (nominal)

Output voltage

Output type (power supply units)

Nominal input voltage

No. of outputs

Output current (max.) - rounded

Product type

Min. input voltage

Weidmüller 1469530000 Rail mounted PSU (DIN) 24 V DC 5 A 120 W No. of outputs:1 x Content 1 pc(s)

Item no:1197711

This article

120 W

Screw terminal

575 V AC

24 V DC

Adjustable

400 - 500 V/AC

1 x

5 A

Rail mounted PSU (DIN)

320 V AC

Weidmüller 1469470000 Rail mounted PSU (DIN) 24 V DC 3 A 72 W No. of outputs:1 x Content 1 pc(s)

Item no:1197706

72 W

Screw terminal

264 V AC370 V DC

24 V DC

Adjustable

100-240 V/AC

1 x

3 A

Rail mounted PSU (DIN)

85 V AC80 V DC

Weidmüller 1469480000 Rail mounted PSU (DIN) 24 V DC 5 A 120 W No. of outputs:1 x Content 1 pc(s)

Item no:1197707

120 W

Screw terminal

264 V AC370 V DC

24 V DC

Adjustable

100-240 V/AC

1 x

5 A

Rail mounted PSU (DIN)

85 V AC80 V DC

Weidmüller 1469490000 Rail mounted PSU (DIN) 24 V DC 10 A 240 W No. of outputs:1 x Content 1 pc(s)

Item no:1197708

240 W

Screw terminal

264 V AC370 V DC

24 V DC

Adjustable

100-240 V/AC

1 x

10 A

Rail mounted PSU (DIN)

85 V AC80 V DC

Weidmüller 1469510000 Rail mounted PSU (DIN) 24 V DC 20 A 480 W No. of outputs:1 x Content 1 pc(s)

Item no:1197709

480 W

Screw terminal

264 V AC370 V DC

24 V DC

Adjustable

100-240 V/AC

1 x

20 A

Rail mounted PSU (DIN)

85 V AC80 V DC

Weidmüller 1469520000 Rail mounted PSU (DIN) 12 V DC 40 A 960 W No. of outputs:1 x Content 1 pc(s)

Item no:1197710

960 W

Screw terminal

264 V AC370 V DC

12 V DC

24 V DC

Adjustable

100-240 V/AC

1 x

40 A

Rail mounted PSU (DIN)

85 V AC80 V DC

Weidmüller 1469540000 Rail mounted PSU (DIN) 24 V DC 10 A 240 W No. of outputs:1 x Content 1 pc(s)

Item no:1197712

240 W

Screw terminal

575 V AC

24 V DC

Adjustable

400 - 500 V/AC

1 x

10 A

Rail mounted PSU (DIN)

320 V AC

Weidmüller 1469550000 Rail mounted PSU (DIN) 12 V DC 20 A 480 W No. of outputs:1 x Content 1 pc(s)

Item no:1197713

480 W

Screw terminal

575 V AC

12 V DC

24 V DC

Adjustable

400 - 500 V/AC

1 x

20 A

Rail mounted PSU (DIN)

320 V AC

Weidmüller 1469560000 Rail mounted PSU (DIN) 24 V DC 40 A 960 W Content 1 pc(s)

Item no:1197714

960 W

Screw terminal

575 V AC

24 V DC

Fixed voltage

400 - 500 V/AC

40 A

Rail mounted PSU (DIN)

320 V AC

Weidmüller 1469580000 SMPSU 12 V DC 10 A 120 W Content 1 pc(s)

Item no:1950329

120 W

Screws

264 V AC370 V DC

12 V DC

Fixed voltage

100-240 V/AC

10 A

SMPSU

85 V AC80 V DC

Documents & Downloads

Datasheet

Datasheet 1197711 Weidmüller 1469530000 Rail mounted PSU (DIN) 24 V DC 5 A 120 W No. of outputs:1 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1197711 Weidmüller 1469530000 Rail mounted PSU (DIN) 24 V DC 5 A 120 W No. of outputs:1 x Content 1 pc(s)

Description

Straight in the serial machine construction can be switched-mode power supplies with above-average performance values real Wettbwerbsvorteile. The value for PR Oeco-Serie offers all the basic functions and impresses with high performance and flexibility. Our PR Oeco-Schaltnetzgerate are characterised by compact design, high degree of efficiency and large service friendliness. Thanks to temperature protection, short circuit and overload resistance place it can be used universally in all applications. Far-reaching security functions and the Combinability with our diode and kapaziatsmodulen as well as UPS components for configuration of a redundant power supply draw solutions with PROeco.

This text is machine translated.
