Buy Weidmüller 1469560000 Rail mounted PSU (DIN) 24 V DC 40 A 960 W Content 1 pc(s)

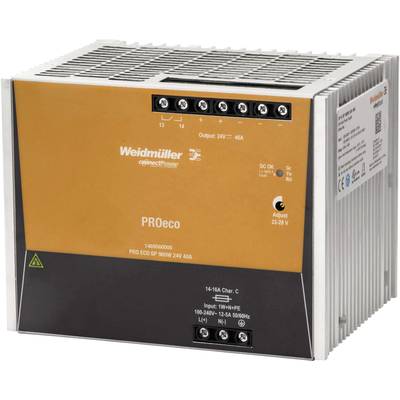

Weidmüller PROeco Power Supply Unit, orange-black, Output: 24V/40A. Connections on top, Model Number 1489500000 on the front.

Diagram shows: Performance (y-axis) remains at 100% up to 50°C, drops to 80% from 60°C. X-axis: Ambient temperature (°C), ≤ 480 watts.

Circuit diagram shows alternating current (AC) and direct current (DC) connections. Top left: L(+), N(-), PE. Right: +, -, 13, 14. Note: 'Pay attention to polarity of DC connection'.

1/3

Datasheet (PDF)

Dispatches on Tue, 6 Oct

5 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 575.63 / piece)

€ 575.63

plus VAT.

Only 5 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Switched-mode power supplies PROeco 960 W 24V 40A

Technical specifications

Nominal input voltage: 400 - 500 V/AC

Product type: Rail mounted PSU (DIN)

Min. input voltage: 320 V AC

Output voltage: 24 V DC

Input voltage (max.): 575 V AC

Max. output current: 40 A

Output current (max.) - rounded: 40 A

: 960 W

Output type (power supply units): Fixed voltage

Phases: 3

Output voltage (nominal): 24 V DC

Connection: Screw terminal

Dim: (L x W x H) 120 x 160 x 125 mm

Weight: 2500 g

Output voltage (max.): 28 V DC

Output voltage (min.): 22 V DC

Operating temperature (max.): +70 °C

Max. operating temperature (derating): +70 °C

Min. operating temperature (derating): -25 °C

Operating temperature (min.): -25 °C

Manufacturer part #: 1469560000

Content: 1 pc(s)

PSU features: Surge protection

Width: 160 mm

Height: 125 mm

Length: 120 mm

Max. temperature: +85 °C

Min. temperature: -40 °C

Type: PRO ECO3 960W 24V 40A

Efficiency: 90 %

: 160

: 125 mm

: 120 mm

: 225 mm

: 1067 W

: 220 mm

: FALSE

: FALSE

: AC/DC

: Screw connection

: TRUE

: IP20

: None

: None

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Power

Connection

Input voltage (max.)

Output voltage (nominal)

Output voltage

Nominal input voltage

Output current (max.) - rounded

Product type

Min. input voltage

Weidmüller 1469560000 Rail mounted PSU (DIN) 24 V DC 40 A 960 W Content 1 pc(s)

Item no:1197714

This article

960 W

Screw terminal

575 V AC

24 V DC

400 - 500 V/AC

40 A

Rail mounted PSU (DIN)

320 V AC

Weidmüller 1469470000 Rail mounted PSU (DIN) 24 V DC 3 A 72 W No. of outputs:1 x Content 1 pc(s)

Item no:1197706

72 W

Screw terminal

264 V AC370 V DC

24 V DC

100-240 V/AC

3 A

Rail mounted PSU (DIN)

85 V AC80 V DC

Weidmüller 1469480000 Rail mounted PSU (DIN) 24 V DC 5 A 120 W No. of outputs:1 x Content 1 pc(s)

Item no:1197707

120 W

Screw terminal

264 V AC370 V DC

24 V DC

100-240 V/AC

5 A

Rail mounted PSU (DIN)

85 V AC80 V DC

Weidmüller 1469490000 Rail mounted PSU (DIN) 24 V DC 10 A 240 W No. of outputs:1 x Content 1 pc(s)

Item no:1197708

240 W

Screw terminal

264 V AC370 V DC

24 V DC

100-240 V/AC

10 A

Rail mounted PSU (DIN)

85 V AC80 V DC

Weidmüller 1469510000 Rail mounted PSU (DIN) 24 V DC 20 A 480 W No. of outputs:1 x Content 1 pc(s)

Item no:1197709

480 W

Screw terminal

264 V AC370 V DC

24 V DC

100-240 V/AC

20 A

Rail mounted PSU (DIN)

85 V AC80 V DC

Weidmüller 1469520000 Rail mounted PSU (DIN) 12 V DC 40 A 960 W No. of outputs:1 x Content 1 pc(s)

Item no:1197710

960 W

Screw terminal

264 V AC370 V DC

12 V DC

24 V DC

100-240 V/AC

40 A

Rail mounted PSU (DIN)

85 V AC80 V DC

Weidmüller 1469530000 Rail mounted PSU (DIN) 24 V DC 5 A 120 W No. of outputs:1 x Content 1 pc(s)

Item no:1197711

120 W

Screw terminal

575 V AC

24 V DC

400 - 500 V/AC

5 A

Rail mounted PSU (DIN)

320 V AC

Weidmüller 1469540000 Rail mounted PSU (DIN) 24 V DC 10 A 240 W No. of outputs:1 x Content 1 pc(s)

Item no:1197712

240 W

Screw terminal

575 V AC

24 V DC

400 - 500 V/AC

10 A

Rail mounted PSU (DIN)

320 V AC

Weidmüller 1469550000 Rail mounted PSU (DIN) 12 V DC 20 A 480 W No. of outputs:1 x Content 1 pc(s)

Item no:1197713

480 W

Screw terminal

575 V AC

12 V DC

24 V DC

400 - 500 V/AC

20 A

Rail mounted PSU (DIN)

320 V AC

Weidmüller 1469580000 SMPSU 12 V DC 10 A 120 W Content 1 pc(s)

Item no:1950329

120 W

Screws

264 V AC370 V DC

12 V DC

100-240 V/AC

10 A

SMPSU

85 V AC80 V DC

Documents & Downloads

Datasheet

Datasheet 1197714 Weidmüller 1469560000 Rail mounted PSU (DIN) 24 V DC 40 A 960 W Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1197714 Weidmüller 1469560000 Rail mounted PSU (DIN) 24 V DC 40 A 960 W Content 1 pc(s)

Information

Information 1197714 Weidmüller 1469560000 Rail mounted PSU (DIN) 24 V DC 40 A 960 W Content 1 pc(s)

Description

Straight in the serial machine construction can be switched-mode power supplies with above-average performance values real Wettbwerbsvorteile. The value for PR Oeco-Serie offers all the basic functions and impresses with high performance and flexibility. Our PR Oeco-Schaltnetzgerate are characterised by compact design, high degree of efficiency and large service friendliness. Thanks to temperature protection, short circuit and overload resistance place it can be used universally in all applications. Far-reaching security functions and the Combinability with our diode and kapaziatsmodulen as well as UPS components for configuration of a redundant power supply draw solutions with PROeco.

This text is machine translated.
