Buy Weidmüller 1469610000 SMPSU 48 V DC 10 A 480 W Content 1 pc(s)

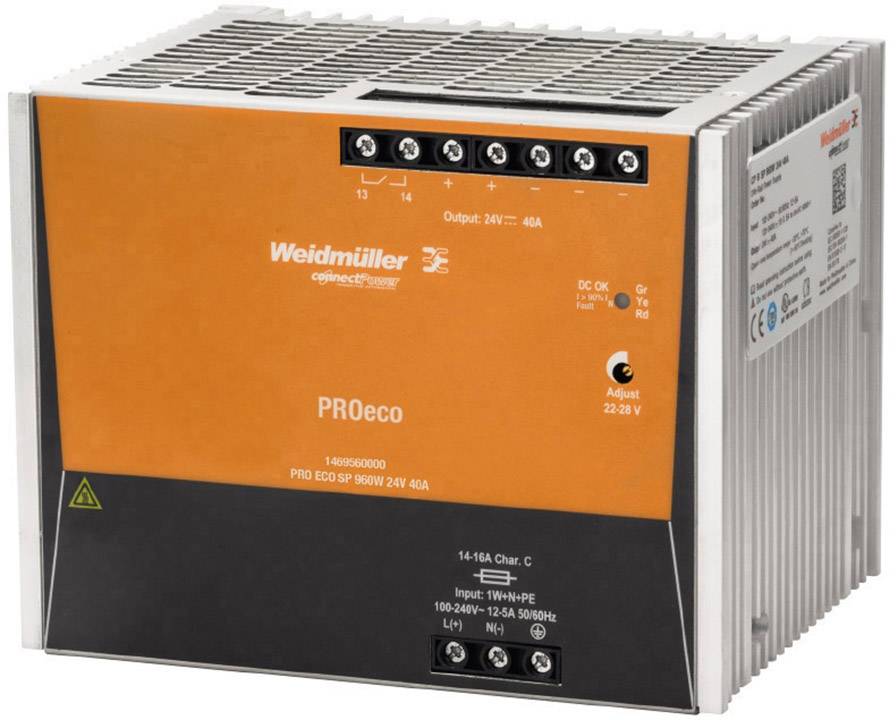

A grey-orange Weidmüller PROeco switched-mode power supply, model 960W 24V 40A. Shows connection and adjustment options.

Diagram shows: Performance (y-axis) remains at 100% up to 50°C, drops to 80% from 60°C. X-axis: Ambient temperature (°C), ≤ 480 watts.

Circuit diagram shows alternating current (AC) and direct current (DC) connections. Top left: L(+), N(-), PE. Right: +, -, 13, 14. Note: 'Pay attention to polarity of DC connection'.

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Switched-mode power supplies PROeco

Technical specifications

Storage temperature: -40 °C to +85 °C.
Inrush current: Max. 3 A.
Frequency range AC 47 Hz - 63 Hz
Current consumption AC: 2.4 A at 230 V/AC, 5.2 A at 110 V/AC
Current consumption DC: 1.5 A at 370 V/DC, 4.6 A at 120 V/DC
Surge protection input: Varistor
Rise time< 100 ms
Number of terminals: 7 (++,--,13,14)
Tightening torque: 0.5 Nm - 0.6 Nm
Housing design: Metal, corrosion-resistant

Type: Power supply, switched-mode power supply, 48 V.

Nominal input voltage: 100-240 V/AC

Product type: SMPSU

Min. input voltage: 85 V AC
80 V DC

Output voltage: 48 V DC

Input voltage: 85 - 264 V/AC, 80 - 370 V DC

Input voltage (max.): 264 V AC
370 V DC

Max. output current: 10 A

Output current (max.) - rounded: 10 A

: 480 W

Phases: 1

Output voltage (nominal): 48 V DC

Connection: Screws

Dim: (L x W x H) 120 x 100 x 125 mm

Weight: 1570 g

Output voltage (max.): 56 V DC

Output voltage (min.): 42 V DC

Operating temperature (max.): +70 °C

Max. operating temperature (derating): +70 °C

Min. operating temperature (derating): -25 °C

Operating temperature (min.): -25 °C

Manufacturer part #: 1469610000

Content: 1 pc(s)

MTBF: 500000 h

Width: 100 mm

Height: 125 mm

Length: 120 mm

: IP20

Max. temperature: +70 °C

Min. temperature: -25 °C

Type: PRO ECO 480W 48V 10A

Efficiency: 93 %

: 100

: 125 mm

: 120 mm

: 225 mm

: 516.1 W

: 160 mm

: FALSE

: FALSE

: AC/DC

: Screw connection

: TRUE

: IP20

: None

: None

UKCA: not relevant

Variants(All information is without VAT, plus shipping costs)

Power

Connection

Input voltage (max.)

Output voltage (nominal)

Output voltage

Nominal input voltage

Output current (max.) - rounded

Product type

Min. input voltage

Weidmüller 1469610000 SMPSU 48 V DC 10 A 480 W Content 1 pc(s)

Item no:1951678

This article

480 W

Screws

264 V AC370 V DC

48 V DC

100-240 V/AC

10 A

SMPSU

85 V AC80 V DC

Weidmüller 1469470000 Rail mounted PSU (DIN) 24 V DC 3 A 72 W No. of outputs:1 x Content 1 pc(s)

Item no:1197706

72 W

Screw terminal

264 V AC370 V DC

24 V DC

100-240 V/AC

3 A

Rail mounted PSU (DIN)

85 V AC80 V DC

Weidmüller 1469480000 Rail mounted PSU (DIN) 24 V DC 5 A 120 W No. of outputs:1 x Content 1 pc(s)

Item no:1197707

120 W

Screw terminal

264 V AC370 V DC

24 V DC

100-240 V/AC

5 A

Rail mounted PSU (DIN)

85 V AC80 V DC

Weidmüller 1469490000 Rail mounted PSU (DIN) 24 V DC 10 A 240 W No. of outputs:1 x Content 1 pc(s)

Item no:1197708

240 W

Screw terminal

264 V AC370 V DC

24 V DC

100-240 V/AC

10 A

Rail mounted PSU (DIN)

85 V AC80 V DC

Weidmüller 1469510000 Rail mounted PSU (DIN) 24 V DC 20 A 480 W No. of outputs:1 x Content 1 pc(s)

Item no:1197709

480 W

Screw terminal

264 V AC370 V DC

24 V DC

100-240 V/AC

20 A

Rail mounted PSU (DIN)

85 V AC80 V DC

Weidmüller 1469520000 Rail mounted PSU (DIN) 12 V DC 40 A 960 W No. of outputs:1 x Content 1 pc(s)

Item no:1197710

960 W

Screw terminal

264 V AC370 V DC

12 V DC

24 V DC

100-240 V/AC

40 A

Rail mounted PSU (DIN)

85 V AC80 V DC

Weidmüller 1469530000 Rail mounted PSU (DIN) 24 V DC 5 A 120 W No. of outputs:1 x Content 1 pc(s)

Item no:1197711

120 W

Screw terminal

575 V AC

24 V DC

400 - 500 V/AC

5 A

Rail mounted PSU (DIN)

320 V AC

Weidmüller 1469540000 Rail mounted PSU (DIN) 24 V DC 10 A 240 W No. of outputs:1 x Content 1 pc(s)

Item no:1197712

240 W

Screw terminal

575 V AC

24 V DC

400 - 500 V/AC

10 A

Rail mounted PSU (DIN)

320 V AC

Weidmüller 1469550000 Rail mounted PSU (DIN) 12 V DC 20 A 480 W No. of outputs:1 x Content 1 pc(s)

Item no:1197713

480 W

Screw terminal

575 V AC

12 V DC

24 V DC

400 - 500 V/AC

20 A

Rail mounted PSU (DIN)

320 V AC

Weidmüller 1469560000 Rail mounted PSU (DIN) 24 V DC 40 A 960 W Content 1 pc(s)

Item no:1197714

960 W

Screw terminal

575 V AC

24 V DC

400 - 500 V/AC

40 A

Rail mounted PSU (DIN)

320 V AC

Documents & Downloads

Datasheet

Datasheet 1951678 Weidmüller 1469610000 SMPSU 48 V DC 10 A 480 W Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1951678 Weidmüller 1469610000 SMPSU 48 V DC 10 A 480 W Content 1 pc(s)

Description

Straight in the serial machine construction can be switched-mode power supplies with above-average performance values real Wettbwerbsvorteile. The value for PR Oeco-Serie offers all the basic functions and impresses with high performance and flexibility. Our PR Oeco-Schaltnetzgerate are characterised by compact design, high degree of efficiency and large service friendliness. Thanks to temperature protection, short circuit and overload resistance place it can be used universally in all applications. Far-reaching security functions and the Combinability with our diode and kapaziatsmodulen as well as UPS components for configuration of a redundant power supply draw solutions with PROeco.

This text is machine translated.
