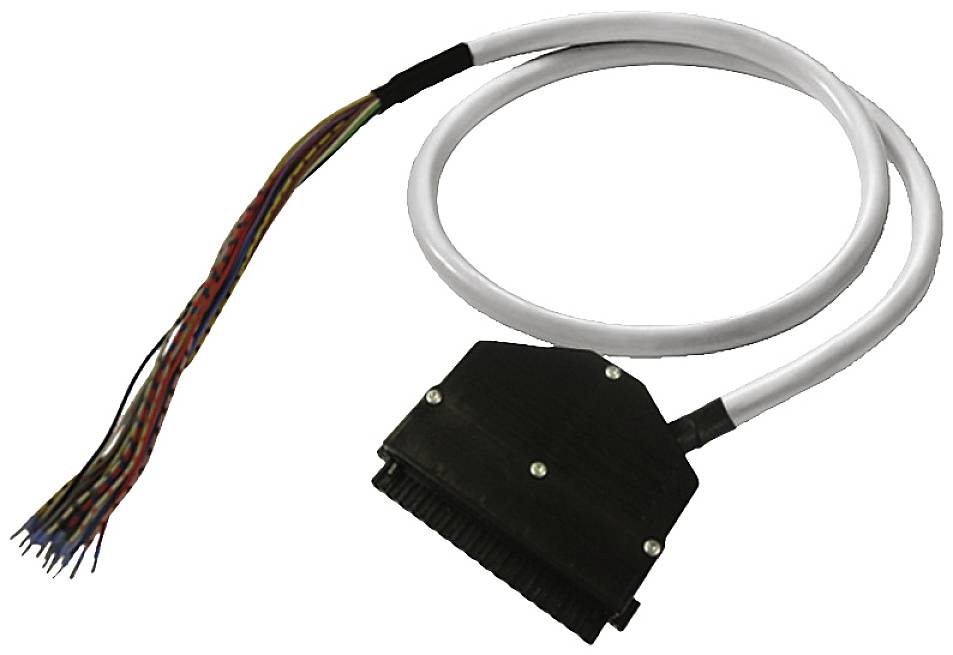

Weidmüller 1481760010 C300-16B-F-2S-M50-1M PLC cable
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 239 g
- Storage temperature, max.: 60 °C
- Storage temperature, min.: -10 °C
- Connection SPS: H0.50/10 (FERRULES 0.50mm²)
- Connection Interface: SP-BLZ 5.08 16P with clamshell
- Number of poles, min.: 16 Pole
- Outer diameter: 15.75 ± 1 mm
- Cable: LiYCY
- Material: PVC
- Wire cross-section: 0.5 mm²
- Permissible current per path, max.: 1 A
- total current, max. 7 A
- resistance: ≤ 39 mΩ/m
- High voltage test: 1 KV/1s
- Product type
PLC cable
- Operating voltage
250, 250 V DC, V AC (max)
- Max. operating voltage
250 V DC
250 V AC
- Length
1 m
- Manufacturer part #
1481760010
- Type
C300-16B-F-2S-M50-1M
- Max. ambient temperature
+50 °C
- Min. ambient temperature
-10 °C
- UKCA
yes
