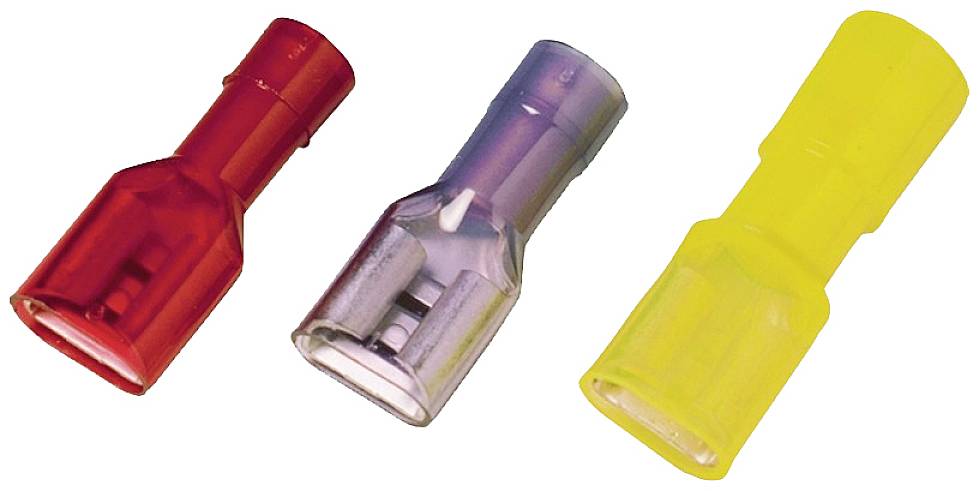

Weidmüller 1491930000 Blade receptacle Connector width: 4.8 mm Connector thickness: 0.8 mm Insulated Blue 100 pc(s)
EAN:
Part number:
Item no:
Product type
Blade receptacle
Connector width
4.8 mm
Insulation type
Insulated
Content
100 pc(s)
max. cross section
2.5 mm²
Datasheet (PDF)
Highlights & Details
- Blue
- 4.8 mm x 0.8 mm
- 1.5 mm² - 2.5 mm²
Our service for you
Technical specifications
- Length: 20.2 mm.
- Product type
Blade receptacle
- Connector width
4.8 mm
- Factory colour
Blue
- Connector thickness
0.8 mm
- Insulation type
Insulated
- Content
100 pc(s)
- max. cross section
2.5 mm²
- Min. cross section
1.5 mm²
- Weight
1.09 g
- Manufacturer part #
1491930000
- Insulation material
PVC
- Cross-section range
1.5 - 2.5 mm²
- Size
4.8 x 0.8 mm
- Type
VFSKHV/1,5-2,5/488
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1949249 Weidmüller 1491930000 Blade receptacle Connector width: 4.8 mm Connector thickness: 0.8 mm Insulated Blue 100 pc(s)
User & Safety Instructions
User & Safety Instructions 1949249 Weidmüller 1491930000 Blade receptacle Connector width: 4.8 mm Connector thickness: 0.8 mm Insulated Blue 100 pc(s)
