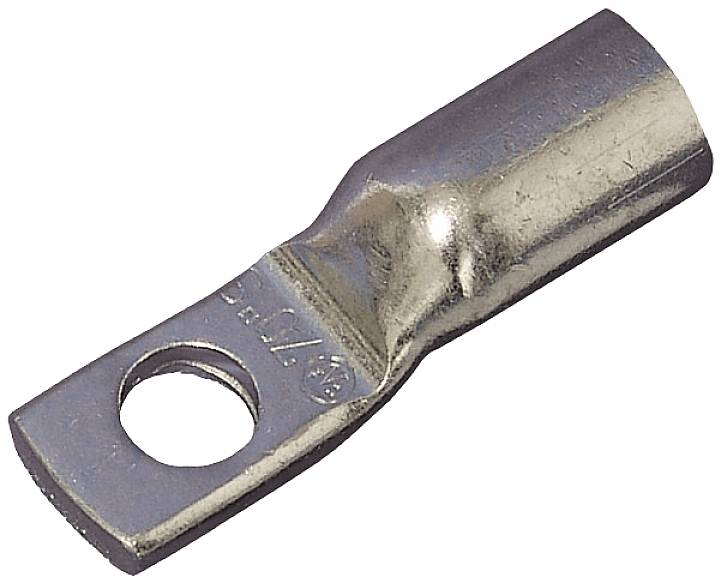

Weidmüller 1494860000 KRN-M8/-70 S Crimp cable lug M8 70 mm² Hole Ø: 8.4 mm 25 pc(s)
EAN:
Part number:
Item no:
Product type
Crimp cable lug
max. cross section
70 mm²
Thread size
M8
Hole Ø
8.4 mm
Content
25 pc(s)
Datasheet (PDF)
Highlights & Details
Pipe cable lug
- Hole Ø: 8.4 mm
- Cross section (max.): 70 mm²
Our service for you
Technical specifications
- Weight: 4.38 g
- Outer diameter Shaft (D3): 16.5 mm
- Flange width (b): 17 mm
- Inner diameter Shaft (D1): 11.8 mm
- Shaft length (a): 21 mm
- Product type
Crimp cable lug
- max. cross section
70 mm²
- Thread size
M8
- Hole Ø
8.4 mm
- Content
25 pc(s)
- Manufacturer part #
1494860000
- Insulation type
Not insulated
- Length
43 mm
- RoHS-compliant
Yes
- Type
KRN-M8/-70 S
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1913735 Weidmüller 1494860000 KRN-M8/-70 S Crimp cable lug M8 70 mm² Hole Ø: 8.4 mm 25 pc(s)
User & Safety Instructions
User & Safety Instructions 1913735 Weidmüller 1494860000 KRN-M8/-70 S Crimp cable lug M8 70 mm² Hole Ø: 8.4 mm 25 pc(s)
Description
Pipe cable lug copper for long-term consistent quality of the electrical connection.
