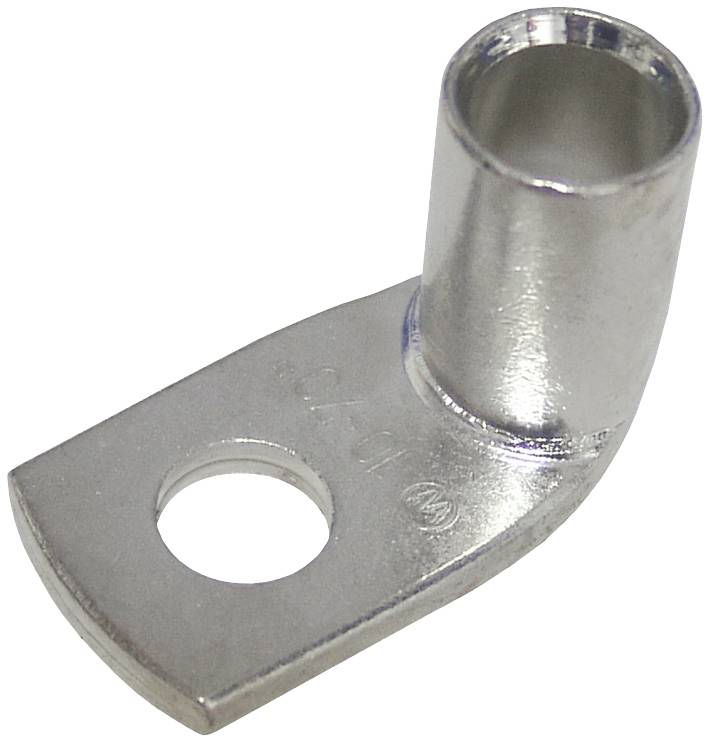

Weidmüller 1495250000 KWN-M4/-2,5 90 Crimp cable lug 90 ° M4 2.5 mm² Hole Ø: 4.3 mm 100 pc(s)
EAN:
Part number:
Item no:
Product type
Crimp cable lug
max. cross section
2.5 mm²
Thread size
M4
Hole Ø
4.3 mm
Content
100 pc(s)
Datasheet (PDF)
Highlights & Details
- Hole Ø: 4.3 mm
- Cross section (max.): 2.5 mm²
Our service for you
Technical specifications
- Weight: 0.18 g
- Outer diameter Shaft (D3): 4.4 mm
- Flange width (b): 8.5 mm
- Inner diameter Shaft (D1): 2.4 mm
- Shaft length (a): 5.5 mm
- Product type
Crimp cable lug
- max. cross section
2.5 mm²
- Thread size
M4
- Hole Ø
4.3 mm
- Connection angle
90°
- Content
100 pc(s)
- Manufacturer part #
1495250000
- Insulation type
Not insulated
- Length
9.2 mm
- RoHS-compliant
Yes
- Type
KWN-M4/-2,5 90
- UKCA
not relevant
