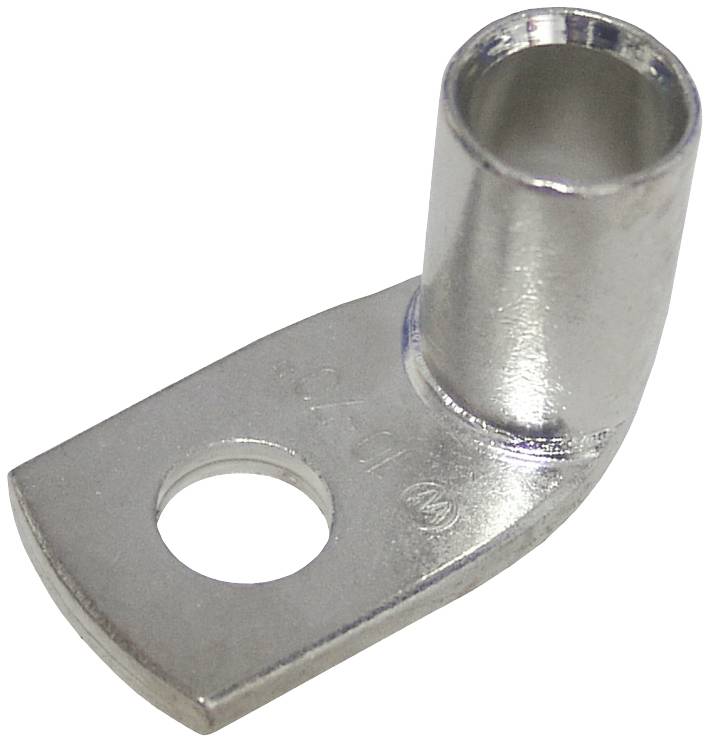

Weidmüller 1495300000 KWN-M4/-4 90 Crimp cable lug 90 ° M4 4 mm² Hole Ø: 4.3 mm 100 pc(s)
EAN:
Part number:
Item no:
Product type
Crimp cable lug
max. cross section
4 mm²
Thread size
M4
Hole Ø
4.3 mm
Content
100 pc(s)
Datasheet (PDF)
Highlights & Details
- Hole Ø: 4.3 mm
- Cross section (max.): 4 mm²
Our service for you
Technical specifications
- Weight: 0.25 g
- Outer diameter Shaft (D3): 5 mm
- Flange width (b): 8.5 mm
- Inner diameter Shaft (D1): 3 mm
- Shaft length (a): 7 mm
- Product type
Crimp cable lug
- max. cross section
4 mm²
- Thread size
M4
- Hole Ø
4.3 mm
- Connection angle
90°
- Content
100 pc(s)
- Manufacturer part #
1495300000
- Insulation type
Not insulated
- Length
9.5 mm
- RoHS-compliant
Yes
- Type
KWN-M4/-4 90
- UKCA
not relevant
