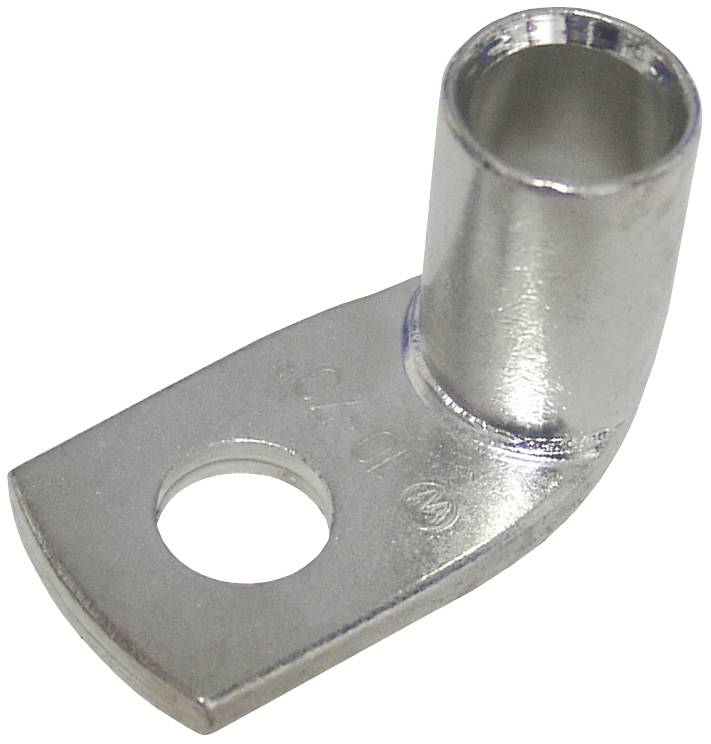

Weidmüller 1497020000 KWN-M5/-10 90 Crimp cable lug 90 ° M5 10 mm² Hole Ø: 5.3 mm 100 pc(s)
EAN:
Part number:
Item no:
Product type
Crimp cable lug
max. cross section
10 mm²
Thread size
M5
Hole Ø
5.3 mm
Content
100 pc(s)
Datasheet (PDF)
Highlights & Details
- Hole Ø: 5.3 mm
- Cross section (max.): 10 mm²
Our service for you
Technical specifications
- Weight: 0.54 g
- Outer diameter Shaft (D3): 7 mm
- Flange width (b): 12 mm
- Inner diameter Shaft (D1): 4.5 mm
- Shaft length (a): 9 mm
- Product type
Crimp cable lug
- max. cross section
10 mm²
- Thread size
M5
- Hole Ø
5.3 mm
- Connection angle
90°
- Content
100 pc(s)
- Manufacturer part #
1497020000
- Insulation type
Not insulated
- Length
11.5 mm
- RoHS-compliant
Yes
- Type
KWN-M5/-10 90
- UKCA
not relevant
