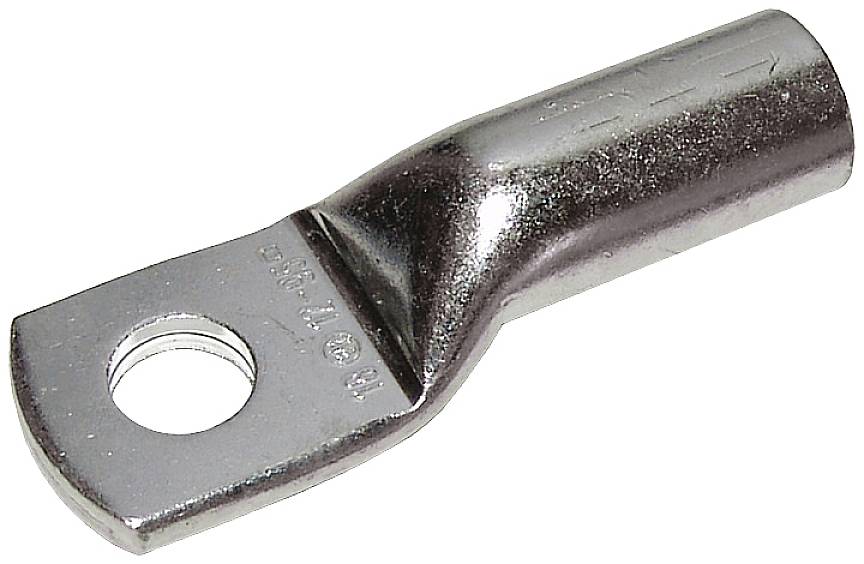

Weidmüller 1497930000 KP-M6/-16 Crimp cable lug M6 16 mm² Hole Ø: 6.4 mm 100 pc(s)
EAN:
Part number:
Item no:
Product type
Crimp cable lug
max. cross section
16 mm²
Thread size
M6
Hole Ø
6.4 mm
Content
100 pc(s)
Datasheet (PDF)
Highlights & Details
- Hole Ø: 6.4 mm
- Cross section (max.): 16 mm²
Technical specifications
- Weight: 1.27 g
- Outer diameter Shaft (D3): 8.5 mm
- Flange width (b): 13 mm
- Inner diameter Shaft (D1): 5.5 mm
- Shaft length (a): 20 mm
- Code Cu: 8 K.
- Product type
Crimp cable lug
- max. cross section
16 mm²
- Thread size
M6
- Hole Ø
6.4 mm
- Contact material
Copper
- Content
100 pc(s)
- Manufacturer part #
1497930000
- Insulation type
Not insulated
- Length
36 mm
- RoHS-compliant
Yes
- Type
KP-M6/-16
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1949276 Weidmüller 1497930000 KP-M6/-16 Crimp cable lug M6 16 mm² Hole Ø: 6.4 mm 100 pc(s)
User & Safety Instructions
User & Safety Instructions 1949276 Weidmüller 1497930000 KP-M6/-16 Crimp cable lug M6 16 mm² Hole Ø: 6.4 mm 100 pc(s)
