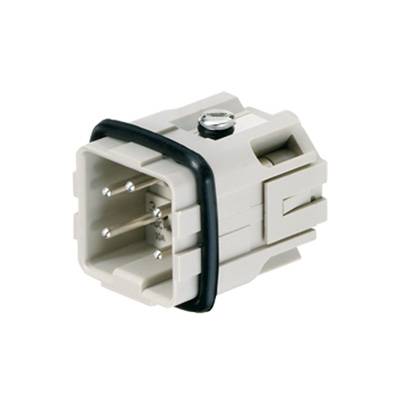

Weidmüller 1498300000 Pin inset RockStar® HDC HA 4 + PE Screws 1 pc(s)
EAN:
Part number:
Item no:
Product type
Pin inset
Connection
Screws
Series
RockStar® HDC HA
Features
copper-plated
Total no. of pins
4 + PE
Datasheet (PDF)
Highlights & Details
Pin insert
- HDC HA 4 MS
Technical specifications
- Net weight: 20 g
- Temperature limit: -40 °C ... 125 °C
- Insulation resistance: 1010 Ω
- Pollution degree: 3
- Width: 21 mm
- Height: 36.5 mm
- Depth: 21 mm
- Size: 1
- Series: HA
- Rated voltage (DIN EN 61984): 400 V
- Rated voltage according to UL/CSA: 600 V AC/DC
- Rated surge voltage (DIN EN 61984): 4 kV
- Rated current (DIN EN 61984): 16 A
- flammability class according to UL 94: V
- -0 Forward resistance: ≤ 2MΩ
- Insulation material: PC glass fiber reinforced (UL listed and railway qualified)
- Insulation material group: IIIA
- plug-in cycles AG: ≥ 500
- connection type PE: Screw connection
- conductor cross-section AWG (PE), max.: AWG 14
- conductor cross-section AWG (PE), min.: AWG 20
- stripping length Rated connection: 15 mm
- stripping length PE connection: 15 mm
- Tightening torque max. PE connection: 0.5 Nm
- : M 3
- Blade dimension Slot (PE connection): SD 0.6 x 3.5
- Surface: Silver passivated
- Material: Copper alloy
- Slotted blade dimension (screw connection): SD 0.6 x 3.5
- Product type
Pin inset
- Series
RockStar® HDC HA
- Features
copper-plated
- Connection
Screws
- Total no. of pins
4 + PE
- Core cross section (max.)
2.5 mm²
- Number of pins
4
- Core cross section (min.)
0.5 mm²
- Content
1 pc(s)
- Leading contact (PE)
Yes
21
36.5 mm
21 mm
400 V
4
Pin
-40-125 °C
V0
4 kV
Screw connection
Silver
3
0.5-2.5 mm²
0.5-2.5 mm²
0.5-2.5 mm²
TRUE
Other copper alloys
16 A
Thermoplastic
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 202763 Weidmüller 1498300000 Pin inset RockStar® HDC HA 4 + PE Screws 1 pc(s)
User & Safety Instructions
User & Safety Instructions 202763 Weidmüller 1498300000 Pin inset RockStar® HDC HA 4 + PE Screws 1 pc(s)
Description
Pin insert. HDC-Use, pin, 250 V, 22 A, 4 pins, screw connection, size: 1. The small and narrow HA series is used, for example, where the space is limited. The Conductor Connection level is designed as a screw element. Number of pins: 3 - 4, Rated current 16 / 22 A, rated voltage 250 V, rated voltage according to UL/CSA: 600 V AC/DC, screw connection.
