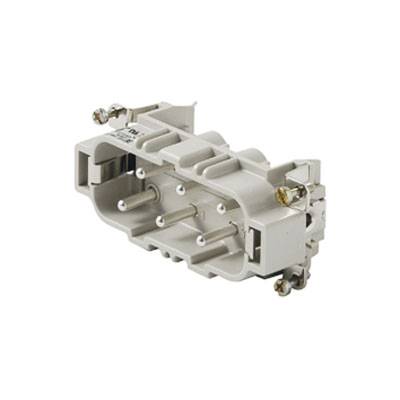

Weidmüller 1498800000 Pin inset RockStar® HDC HSB 6 + PE Screws 1 pc(s)
EAN:
Part number:
Item no:
Product type
Pin inset
Connection
Screws
Series
RockStar® HDC HSB
Features
copper-plated
Total no. of pins
6 + PE
Datasheet (PDF)
Highlights & Details
Pin insert
- HDC HSB 6 MS 7 - 12
Technical specifications
- Net weight: 82 g
- Temperature limit: -40 °C ... 125 °C
- Insulation resistance: 1010 Ω
- Pollution degree: 3
- Width: 34 mm
- Height: 34 mm
- Depth: 84.5 mm
- Length Socket: 84.5 mm
- Size: 6
- Series: HSB
- Rated voltage (DIN EN 61984): 400 V
- Rated voltage according to UL/CSA: 600 V AC/DC
- Rated surge voltage (DIN EN 61984): 6 kV
- Rated current (DIN EN 61984): 35 A
- flammability class according to UL 94: V-0
- Forward resistance: ≤ 2MΩ
- Insulation material: PC glass fiber reinforced (UL listed and railway qualified)
- Insulation material group: IIIA
- plug-in cycles AG: ≥ 500
- Connection type PE: Screw connection
- conductor cross-section AWG (PE), max.: AWG 10
- conductor cross-section AWG (PE), min.: AWG 20
- stripping length Rated connection: 11 mm
- Wire stripping length PE connection: 10 mm
- max. 2.5 Nm
- Tightening torque min. PE connection: 2 Nm
- Mounting screw: M 5
- Cross-head blade dimension: GR. PZ2
- Slotted blade dimension (PE connection): 1 x 5.5
- Surface: Silver passivated
- Material: Copper alloy
- Blade dimension Slotted (screw connection): SD 0.8 x 4.0
- Height of plug: 34 mm
- Product type
Pin inset
- Series
RockStar® HDC HSB
- Features
copper-plated
- Connection
Screws
- Total no. of pins
6 + PE
- Core cross section (max.)
6 mm²
- Number of pins
6
- Core cross section (min.)
0.5 mm²
- Content
1 pc(s)
- Leading contact (PE)
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 202768 Weidmüller 1498800000 Pin inset RockStar® HDC HSB 6 + PE Screws 1 pc(s)
User & Safety Instructions
User & Safety Instructions 202768 Weidmüller 1498800000 Pin inset RockStar® HDC HSB 6 + PE Screws 1 pc(s)
Description
Pin insert. HDC-Use, pin, 400 V, 35 A, 6 pins, screw terminals, size: 6. With the HSB series realize user 35 A at the same time via any contact. The mounting is done with screw connection, which leads to a secure and reliable connection leads. The Conductor Connection level is designed as a screw element. All screw connection elements are equipped with a wire protection spring. Number of poles: 12, rated current 35 A, rated voltage 400 V, rated voltage according to UL/CSA: 600 V AC/DC, screw connection.
