Weidmüller 1512640025 PAC-S300-4X10-V0-2M5 PLC cable
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 450 g
- Storage temperature, max.: 60 °C
- Storage temperature, min.: -10 °C
- Connection SPS: Siemens S7300 6ES7921-3AH20-1AA0 40P
- Connection Interface: 4xHE10 10P
- Number of poles, min.: 10 Pole
- Outer diameter: 5.4 ± 1 mm
- Cable: LiYY Material
- : PVC
- conductor cross-section: 0.14 mm²
- Permissible current per path, max.: 1 A
- Total current, max.: 3 A
- resistance: ≤ 150mΩ/m
- High voltage test: 1 KV/1s
- Product type
PLC cable
- Operating voltage
60, 25 V DC, V AC (max)
- Max. operating voltage
60 V DC
25 V AC
- Length
2.5 m
- Manufacturer part #
1512640025
- Type
PAC-S300-4X10-V0-2M5
- Max. ambient temperature
+50 °C
- Min. ambient temperature
-10 °C
- Series
SIMATIC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1914099 Weidmüller 1512640025 PAC-S300-4X10-V0-2M5 PLC cable
User & Safety Instructions
User & Safety Instructions 1914099 Weidmüller 1512640025 PAC-S300-4X10-V0-2M5 PLC cable
Description

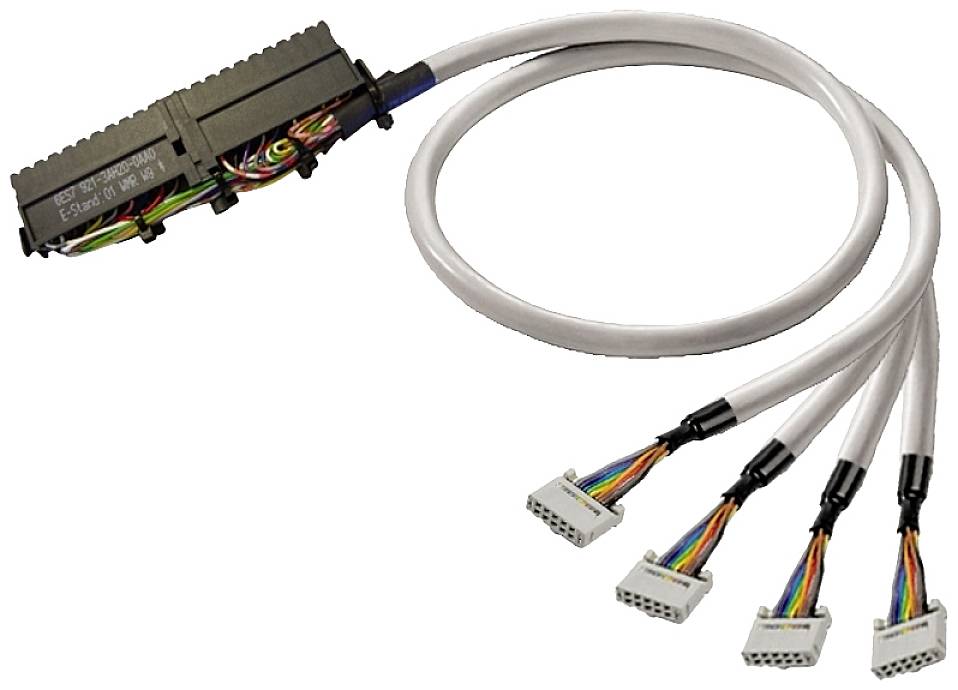

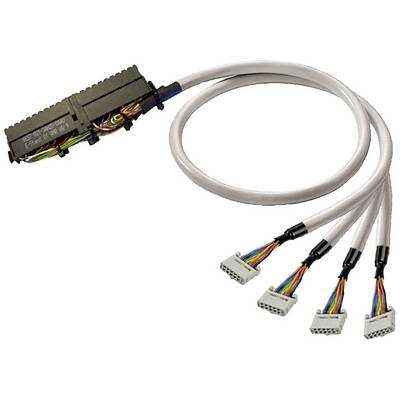

Plc cable, digital signals, 10 poles, cable LiYY, 2.5 m, 0.14 mm², material PVC
