Buy Weidmüller 1513700000 Grey 25 pc(s)

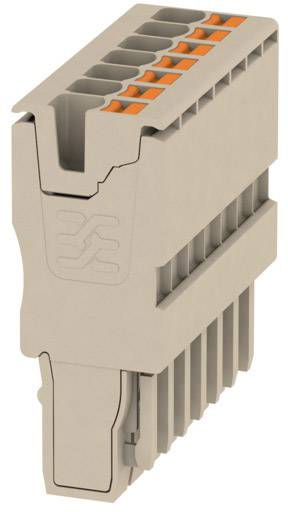

An electrical connector in a light brown colour with multiple pins and orange elements at the top, suitable for electrical wiring.

Image similar

Packaging type

Piece

Type

Blank

Factory colour

Grey

Stripping length

10 mm

Dim

(L x W x H) 42.5 x 35.7 x 16.5 mm

Datasheet (PDF)

Dispatches on Tue, 13 Oct

5 Set(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number (Package size 25 pc(s))

Set(s)

Total (€ 3.87 / piece)

€ 96.63

plus VAT.

Only 5 Set(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Spring-cage connection plug

Our service for you

Technical specifications

Wire stripping length: 10 mm

Packaging type: Piece

Factory colour: Grey

Type: Blank

Stripping length: 10 mm

Dim: (L x W x H) 42.5 x 35.7 x 16.5 mm

Connection: Plug

Connector colour: Grey

Manufacturer part #: 1513700000

Industrial packaging: Yes

Content: 25 pc(s)

Nominal voltage: 800 V

Nominal current: 24 A

Nominal current - rounded value: 24 A

Number of pins: 7

Width: 35.7 mm

Height: 16.5 mm

Length: 42.5 mm

RoHS-compliant: Yes

Series: APG

Type: APG 2.5/7

Cross section (flexible) (max.): 2.5 mm²

Cross section (inflexible) (max.): 2.5 mm²

Cross section (flexible) (min.): 0.5 mm²

Cross section (inflexible) (min.): 0.5 mm²

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 1514087 Weidmüller 1513700000 Grey 25 pc(s)

User & Safety Instructions

User & Safety Instructions 1514087 Weidmüller 1513700000 Grey 25 pc(s)
