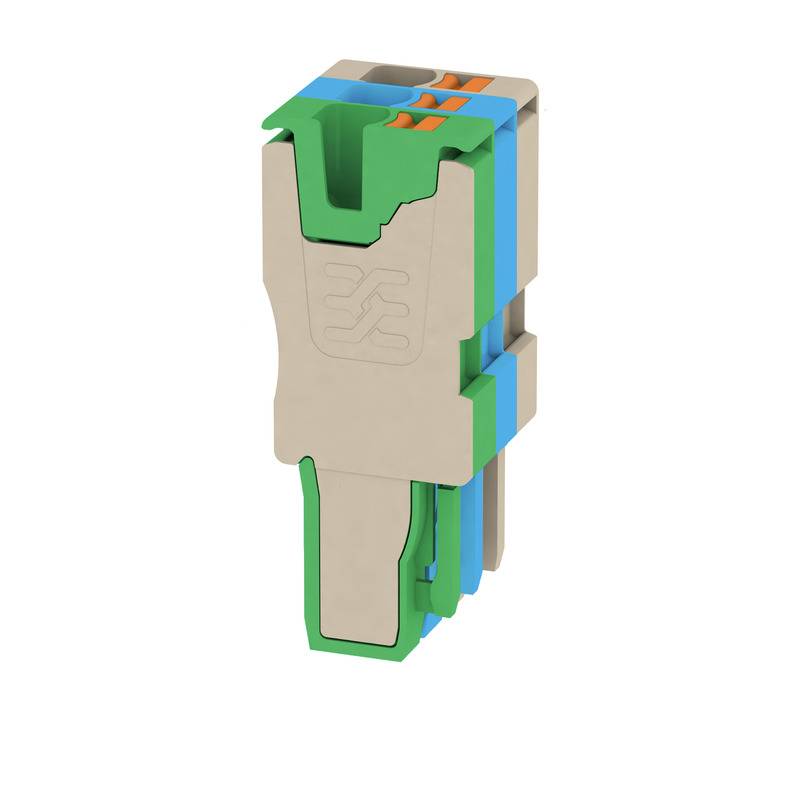

Image similar

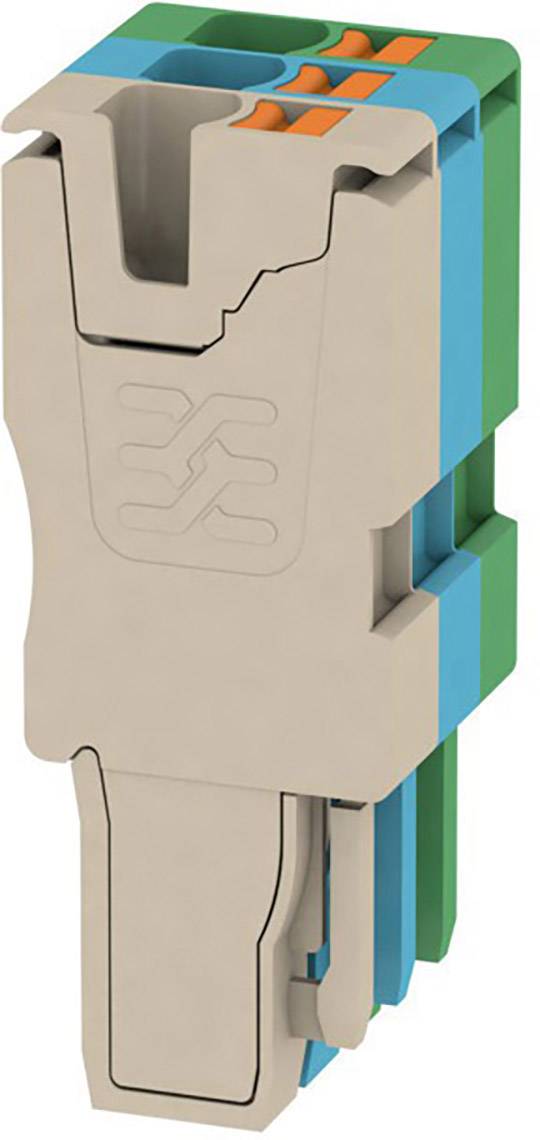

Image similar

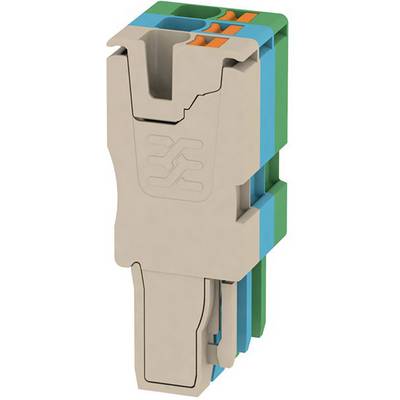

Weidmüller 1513820000 Grey, Blue, Green 25 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Type
Blank
Factory colour
Grey
Blue
Green
Stripping length
10 mm
Dim
(L x W x H) 42.5 x 15.3 x 16.5 mm
Datasheet (PDF)
Number (Package size 25 pc(s))
Total (€ 2.02 / piece)
€ 50.41
plus VAT.
Only 5 Set(s) available
Highlights & Details
Spring-cage connection plug
Our service for you
Technical specifications
- Wire stripping length: 10 mm
- Packaging type
Piece
- Factory colour
Grey
Blue
Green
- Type
Blank
- Stripping length
10 mm
- Dim
(L x W x H) 42.5 x 15.3 x 16.5 mm
- Connection
Plug
- Connector colour
Grey
- Manufacturer part #
1513820000
- Industrial packaging
Yes
- Content
25 pc(s)
- Nominal voltage
800 V
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Number of pins
3
- Width
15.3 mm
- Height
16.5 mm
- Length
42.5 mm
- RoHS-compliant
Yes
- Series
APG
- Type
APG 2.5/3-BG-BL-GN
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (max.)
2.5 mm²
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- UKCA
not relevant
