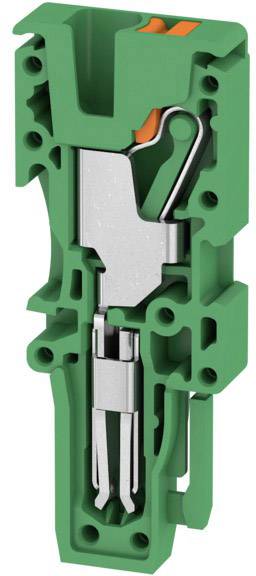

Weidmüller 1513930000 Green 50 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Type
Blank
Factory colour
Green
Stripping length
10 mm
Dim
(L x W x H) 42.5 x 5.1 x 16.5 mm
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 0.82 / piece)
€ 41.17
plus VAT.
14-day return policy included
Technical specifications
- Wire stripping length: 10 mm
- Packaging type
Piece
- Factory colour
Green
- Type
Blank
- Stripping length
10 mm
- Dim
(L x W x H) 42.5 x 5.1 x 16.5 mm
- Connection
Plug
- Connector colour
Green
- Manufacturer part #
1513930000
- Industrial packaging
Yes
- Content
50 pc(s)
- Nominal voltage
800 V
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Number of pins
1
- Width
5.1 mm
- Height
16.5 mm
- Length
42.5 mm
- RoHS-compliant
Yes
- Series
APG
- Type
APG 2.5 MI GN
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (max.)
2.5 mm²
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1514116 Weidmüller 1513930000 Green 50 pc(s)
User & Safety Instructions
User & Safety Instructions 1514116 Weidmüller 1513930000 Green 50 pc(s)
