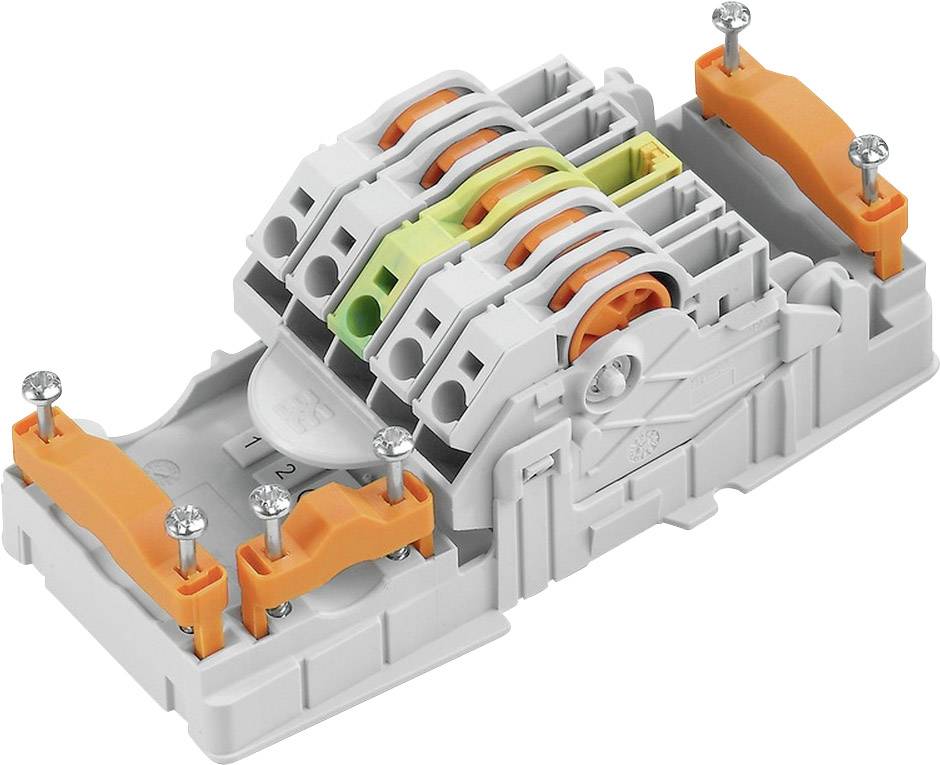

Weidmüller 1534930000 PT6 DC 1/2/PE/3/4 Connector flexible: - fixed: - 1 pc(s) Grey Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Connector
Factory colour
Grey
Content
1 pc(s)
Dim
(L x W) 139.5 mm x 61.5 mm
Technical specifications
- Height: 54 mm
- Connection 2: Plug PTS4, plug PTDS4
- Codable: Yes, coded to PE
- Protection type: IP20
- Silicone: No
- Halogen: No
- Flammability class according to UL 94: V-0
- Blade dimensions: 0.6 x 3.5 mm
- Blade dimensions, Push-in connection: 0.6 x 3.5 mm
- Packaging type
Piece
- Product type
Connector
- Factory colour
Grey
- Content
1 pc(s)
- Dim
(L x W) 139.5 mm x 61.5 mm
- Manufacturer part #
1534930000
- Stripping length
14 mm
- Connection
Push-in connector
- Insulation material
PA
- Width
61.5 mm
- Length
139.5 mm
- RoHS-compliant
Yes
- Connector clip features
PG
- UKCA
yes
