Buy Weidmüller 1547670000 Dual port continuity 5.1 mm Pull spring Orange 50 pc(s)

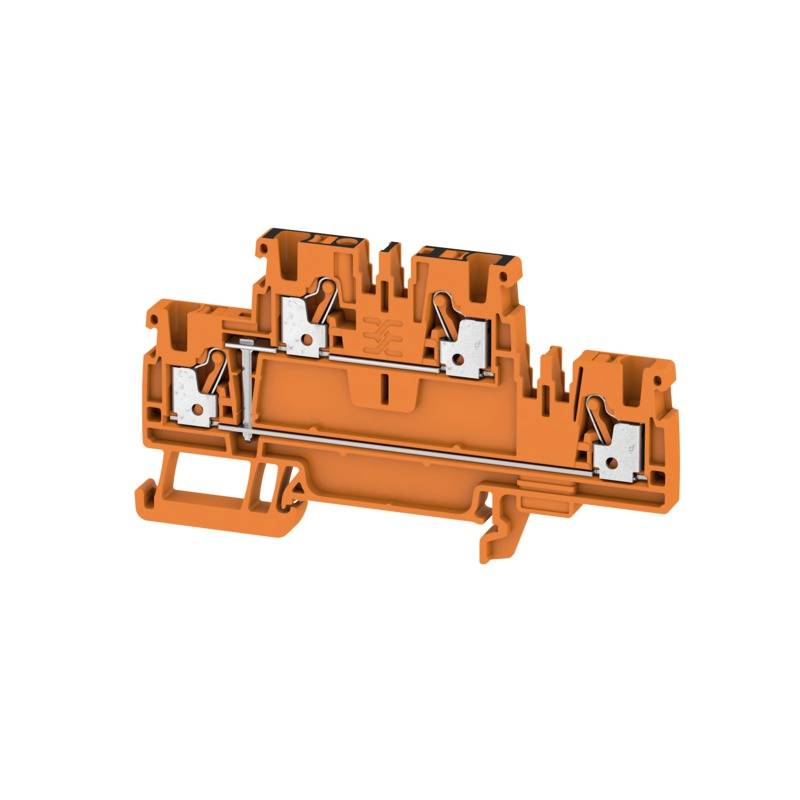

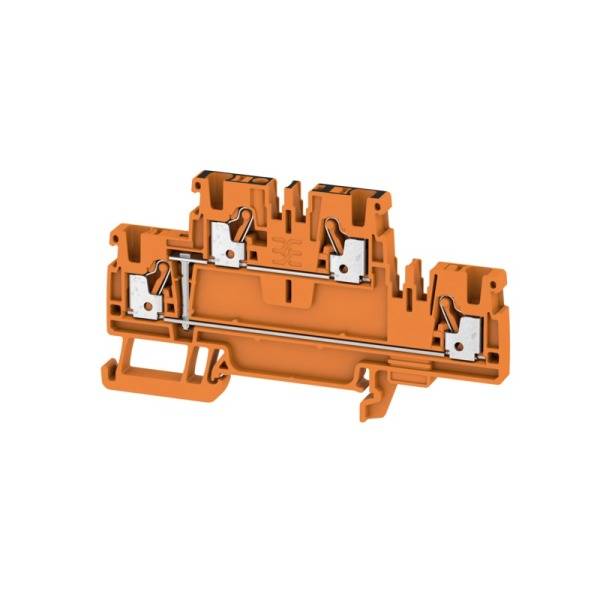

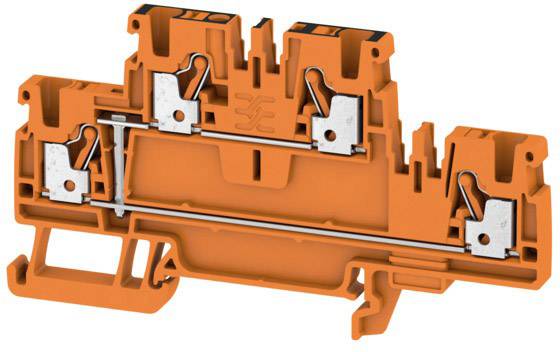

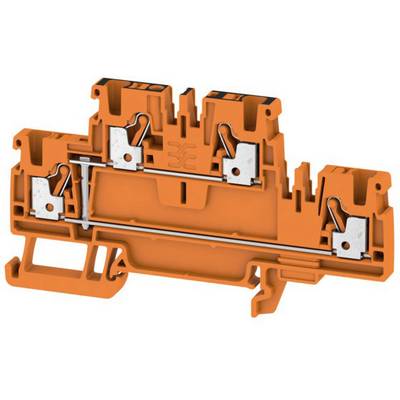

Orange terminal block with metal connections, suitable for electrical cable connections in control panels or other electrical applications.

Image similar

Product type

Dual port continuity

Connection

Pull spring

Cross section (flexible) (max.)

2.5 mm²

Cross section (inflexible) (max.)

2.5 mm²

Nominal current - rounded value

24 A

Datasheet (PDF)

Show alternatives

Sales and shipping:

Total (€ 3.70 / piece)

€

Report legal concerns

Highlights & Details

Double-level terminal block

A2T 2.5 VL OR

Technical specifications

Product type: Dual port continuity

Connection: Pull spring

Cross section (flexible) (min.): 0.5 mm²

Cross section (flexible) (max.): 2.5 mm²

Cross section (inflexible) (min.): 0.5 mm²

Cross section (inflexible) (max.): 2.5 mm²

AWG (min.): 28

AWG max.: 12

Clamp width: 5.1 mm

Number of pins: 4

Factory colour: Orange

Nominal current: 24 A

Nominal current - rounded value: 24 A

Nominal voltage: 800 V

Stripping length (max.): 10 mm

Manufacturer part #: 1547670000

Content: 50 pc(s)

Industrial packaging: Yes

Type: A2T 2.5 VL OR

Dim: (L x W x H) 50.5 x 5.1 x 90 mm

Width: 5.1 mm

Height: 90 mm

Length: 50.5 mm

RoHS-compliant: Yes

Connections: 4

Nominal voltage (details): 800 V

Nominal current (details): 24 A

Variants(All information is without VAT, plus shipping costs)

Type

Nominal current - rounded value

Connection

Factory colour

Content

Product type

Cross section (inflexible) (max.)

Cross section (flexible) (max.)

Cross section (inflexible) (min.)

Cross section (flexible) (min.)

Weidmüller 1547670000 Dual port continuity 5.1 mm Pull spring Orange 50 pc(s)

Item no:1513678

This article

A2T 2.5 VL OR

24 A

Pull spring

Orange

50 pc(s)

Dual port continuity

2.5 mm²

0.5 mm²

Weidmüller 1547620000 Dual port continuity 5.1 mm Pull spring Blue 50 pc(s)

Item no:1513677

A2T 2.5 BL

24 A

Pull spring

Blue

50 pc(s)

Dual port continuity

2.5 mm²

0.5 mm²

Weidmüller 1547630000 Dual port continuity 5.1 mm Pull spring Orange 50 pc(s)

Item no:1513802

A2T 2.5 OR

24 A

Pull spring

Orange

50 pc(s)

Dual port continuity

2.5 mm²

0.5 mm²

Weidmüller 1547680000 Dual port PG terminal 5.1 mm Pull spring Green, Yellow 50 pc(s)

Item no:1513803

A2T 2.5 PE

24 A

Pull spring

GreenYellow

50 pc(s)

Dual port PG terminal

2.5 mm²

0.5 mm²

Weidmüller 1547650000 Dual port continuity 5.1 mm Pull spring Grey 50 pc(s)

Item no:1513804

A2T 2.5 VL

24 A

Pull spring

Grey

50 pc(s)

Dual port continuity

2.5 mm²

0.5 mm²

Weidmüller 1547660000 Dual port continuity 5.1 mm Pull spring Blue 50 pc(s)

Item no:1514055

A2T 2.5 VL BL

24 A

Pull spring

Blue

50 pc(s)

Dual port continuity

2.5 mm²

0.5 mm²

Weidmüller 1547610000 Dual port continuity 5.1 mm Pull spring Grey 50 pc(s)

Item no:1514056

A2T 2.5

24 A

Pull spring

Grey

50 pc(s)

Dual port continuity

2.5 mm²

0.5 mm²

Weidmüller 1547640000 Dual port PG terminal 5.1 mm Pull spring Green, Yellow 50 pc(s)

Item no:1514057

A2T 2.5 FT-PE

24 A

Pull spring

GreenYellow

50 pc(s)

Dual port PG terminal

2.5 mm²

0.5 mm²

Weidmüller 2469390000 Dual port continuity 3.50 mm Pull spring Beige 50 pc(s)

Item no:1669261

A2T 1.5 FT-PE

17.5 A

Pull spring

Beige

50 pc(s)

Dual port continuity

1.50 mm²

0.14 mm²

Weidmüller 2469400000 Dual port continuity 3.50 mm Pull spring Beige 50 pc(s)

Item no:1669262

A2T 1.5 VL

17.5 A

Pull spring

Beige

50 pc(s)

Dual port continuity

1.50 mm²

0.14 mm²

Documents & Downloads

Datasheet

Datasheet 1513678 Weidmüller 1547670000 Dual port continuity 5.1 mm Pull spring Orange 50 pc(s)
