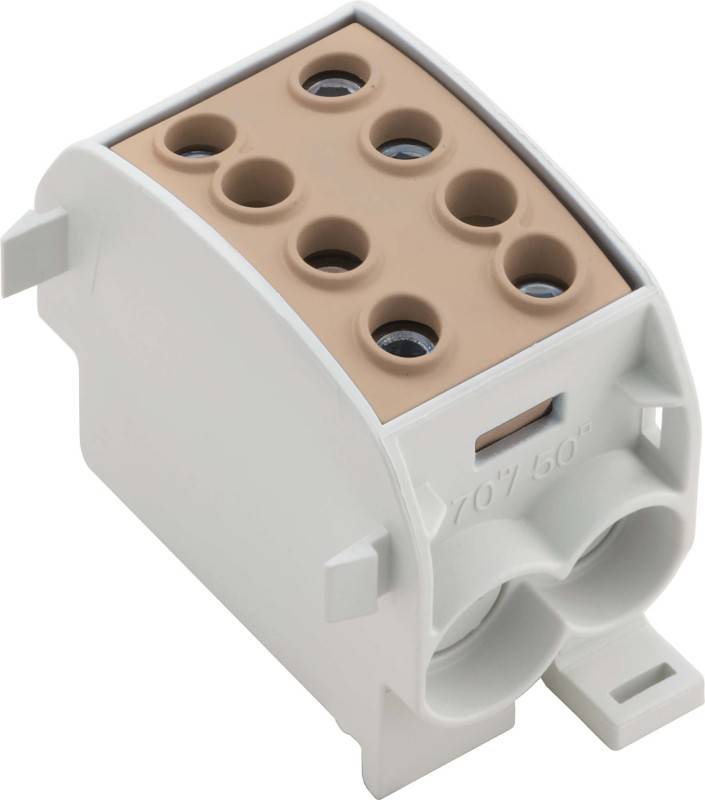

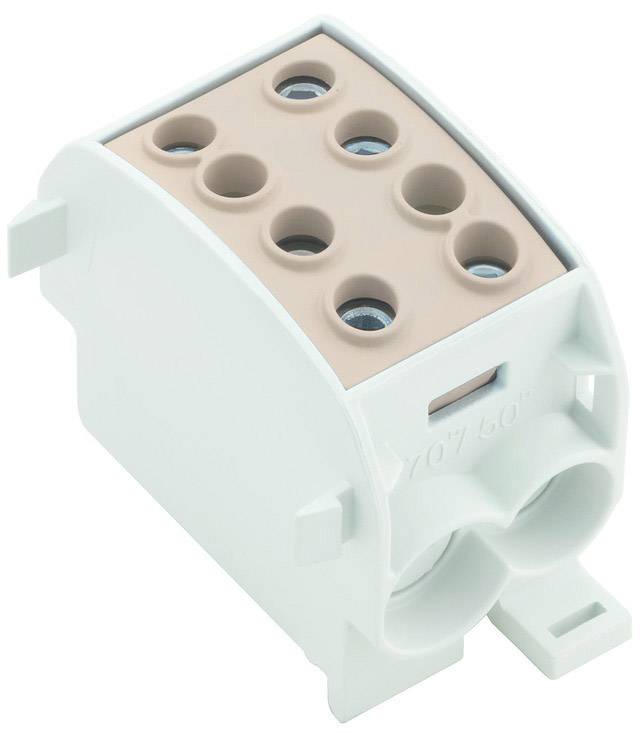

Weidmüller 1561820000 Distributor serial terminal Screws Brown 3 pc(s)
EAN:
Part number:
Item no:
Product type
Distributor serial terminal
Connection
Screws
Cross section (flexible) (max.)
70 mm²
Cross section (inflexible) (max.)
70 mm²
Nominal current - rounded value
300 A
Datasheet (PDF)
Number (Package size 3 pc(s))
Total (€ 19.61 / piece)
€ 58.82
plus VAT.
Only 5 Set(s) available
Highlights & Details
Distribution Block
- WPD 103 2X70/2X50 BN
Technical specifications
- Product type
Distributor serial terminal
- Connection
Screws
- Cross section (flexible) (min.)
25 mm²
- Cross section (flexible) (max.)
70 mm²
- Cross section (inflexible) (min.)
25 mm²
- Cross section (inflexible) (max.)
70 mm²
- No. of rows
1
- Pins per row
2
- Number of pins
2
- Factory colour
Brown
- Nominal current
300 A
- Nominal current - rounded value
300 A
- Nominal voltage
1000 V
- Manufacturer part #
1561820000
- Content
3 pc(s)
- Type
WPD 103 2X70/2X50 BN
- Dim
(L x W x H) 53.30 x 32.80 x 63 mm
- Width
32.80 mm
- Height
63 mm
- Length
53.30 mm
- RoHS-compliant
Yes
- Flammability rating
V0
