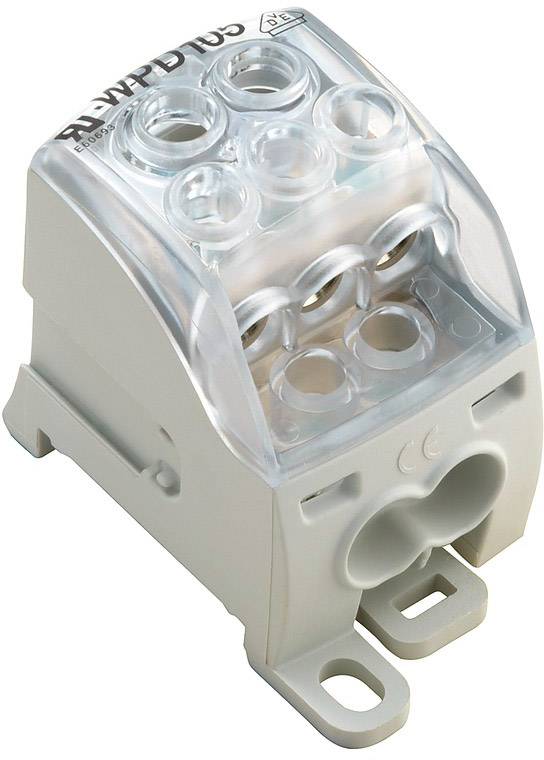

Weidmüller 1562170000 Distribution block Screws Grey, Transparent 1 pc(s)
EAN:
Part number:
Item no:
Product type
Distribution block
Connection
Screws
Cross section (flexible) (max.)
35 mm²
Cross section (inflexible) (max.)
35 mm²
Nominal current - rounded value
125 A
Datasheet (PDF)
Number
Total (€ 43.69 / piece)
€ 43.69
plus VAT.
Only 5 Set(s) available
Technical specifications
- Product type
Distribution block
- Connection
Screws
- Cross section (flexible) (min.)
16 mm²
- Cross section (flexible) (max.)
35 mm²
- Cross section (inflexible) (min.)
16 mm²
- Cross section (inflexible) (max.)
35 mm²
- No. of rows
1
- Pins per row
2
- Number of pins
2
- Factory colour
Grey
Transparent
- Nominal current
125 A
- Nominal current - rounded value
125 A
- Nominal voltage
1000 V
- Manufacturer part #
1562170000
- Content
1 pc(s)
- Type
WPD 105 1x35+1x16/2x25+3x16 GY
- Dim
(L x W x H) 53.70 x 35.60 x 70 mm
- Width
35.60 mm
- Height
70 mm
- Length
53.70 mm
- RoHS-compliant
Yes
Direct mounting
Grey
35.6
70 mm
53.7 mm
1000 V
-50-130 °C
V0
FALSE
Screw connection
Other
1
2
TRUE
Thermoplastic
214 A
TRUE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1669175 Weidmüller 1562170000 Distribution block Screws Grey, Transparent 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1669175 Weidmüller 1562170000 Distribution block Screws Grey, Transparent 1 pc(s)
Description
Main cable branch terminal 35+1x 16/2 x25+3x16GY WPD 10
