Weidmüller 1603290000 LOGIMARK-KARTENHALTER Badge Fitting type: Screw, Pivet Writing area: 90 x 90 mm Black No. of marke
EAN:
Part number:
Item no:
Product type
Badge
Fitting type
Screw
Pivet
Writing area length
90 mm
Writing area width
90 mm
Type
LOGIMARK-KARTENHALTER
Datasheet (PDF)
Highlights & Details

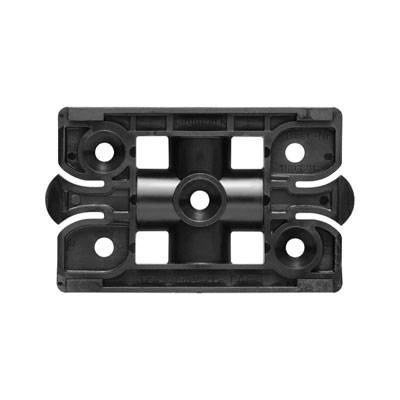

Bracket for device marker multi-card
Our service for you
Technical specifications
- Depth: 13 mm
- Net weight: 21.15 g
- flammability class according to UL 94: V-2
- Type
LOGIMARK-KARTENHALTER
- Product type
Badge
- Fitting type
Screw
Pivet
- Writing area length
90 mm
- Writing area width
90 mm
- Writing area
90 x 90 mm
- Material
PA66
- Suited for series
Devices and appliances
Universal usage
- Features
Printable
UL94 flammability rating
- Series
LOGIM
- Min. temperature
-40 °C
- Max. temperature
+100 °C
- Factory colour
Black
- No. of markers
20
- Dim
(L x W x H) 90 x 58 x 90 mm
- Industrial packaging
Yes
- Content
20 pc(s)
- Width
58 mm
- Height
90 mm
- Length
90 mm
- RoHS-compliant
Yes
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 324396 Weidmüller 1603290000 LOGIMARK-KARTENHALTER Badge Fitting type: Screw, Pivet Writing area: 90 x 90 mm Black No. of marke
User & Safety Instructions
User & Safety Instructions 324396 Weidmüller 1603290000 LOGIMARK-KARTENHALTER Badge Fitting type: Screw, Pivet Writing area: 90 x 90 mm Black No. of marke
Description
With their razor-sharp printed writing area in different sizes, the multi-functional clip card engraved geratemarkierern at eye level as the ideal alternative for the labelling of electrical installations and switching systems, operate the entire spectrum of fixing methods. From the simple device labelling on the identification of pipes, valves, motors or lamps in accordance with DIN V VDE V 0108 (Part 100) to the type plate creation including colored company logo.
