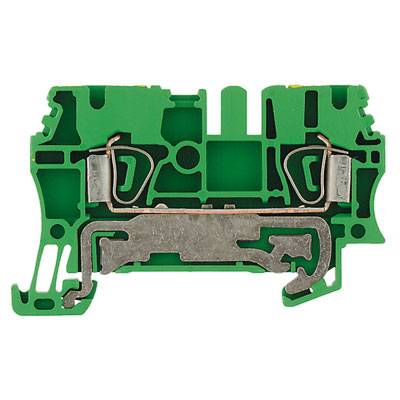

Weidmüller 1608640000 PG terminal Pull spring Green-yellow 50 pc(s)
EAN:
Part number:
Item no:
Product type
PG terminal
Connection
Pull spring
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
4 mm²
Content
50 pc(s)
Datasheet (PDF)
Highlights & Details
Earth conductor terminal
- ZPE 2.5
Our service for you
Technical specifications
- Product type
PG terminal
- Connection
Pull spring
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
4 mm²
- Factory colour
Green-yellow
- Manufacturer part #
1608640000
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
ZPE 2.5
- Dim
(L x W x H) 63 x 5.1 x 38.5 mm
- Width
5.1 mm
- Height
38.5 mm
- Length
63 mm
- RoHS-compliant
Yes
- Weight
11.17 g
- Type
Cpe 2.5
Documents & Downloads
Datasheet
Datasheet 324648 Weidmüller 1608640000 PG terminal Pull spring Green-yellow 50 pc(s)
User & Safety Instructions
User & Safety Instructions 324648 Weidmüller 1608640000 PG terminal Pull spring Green-yellow 50 pc(s)
Description
Earth conductor terminal. Z-Series terminal with spring-cage connection, nominal cross-section: 2.5 mm², spring-cage connection, Wemid, green/yellow. Terminal blocks in spring technology, the Z-series, are specifically tailored to customer requirements: Low available space, Spacious marking surfaces, integrated test point, cross-connectivity within the Z-series and to other Weidmüller terminal block ranges. The Z-series terminals have a large clamping range and up to two cross-connection channels.
