Buy Weidmüller 1631640003 LOGIM.-KH. ES Badge Fitting type: Screw, Pivet Writing area: 90 x 90 mm Beige No. of markers: 20 2

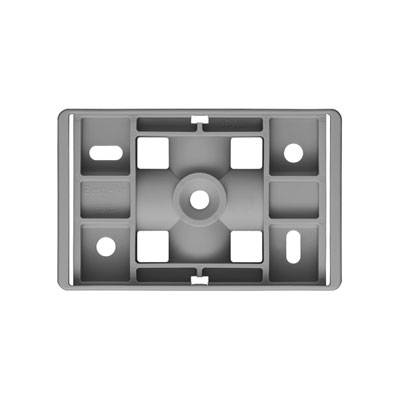

A silver rectangular plate with various openings and a central circle on a white background, resembling a mechanical component.

Product type

Badge

Fitting type

Screw

Pivet

Writing area length

90 mm

Writing area width

90 mm

Type

LOGIM.-KH. ES

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Bracket for device marker multi-card

Our service for you

Technical specifications

Depth: 13 mm
Net weight: 25.15 g
flammability class according to UL 94: V-2

Type: LOGIM.-KH. ES

Product type: Badge

Fitting type: Screw
Pivet

Writing area length: 90 mm

Writing area width: 90 mm

Writing area: 90 x 90 mm

Material: PA66

Suited for series: Devices and appliances
Universal usage

Features: Printable
UL94 flammability rating

Series: LOGIM

Min. temperature: -40 °C

Max. temperature: +100 °C

Factory colour: Beige

No. of markers: 20

Dim: (L x W x H) 90 x 58 x 90 mm

Industrial packaging: Yes

Content: 20 pc(s)

Width: 58 mm

Height: 90 mm

Length: 90 mm

RoHS-compliant: Yes

UKCA: not relevant

Variants(All information is without VAT, plus shipping costs)

Type

Material

Fitting type

Writing area width

Writing area length

Product type

Weidmüller 1057580000 CC 15/60 O4MM MC NE WS Device markers Fitting type: Cable tie Writing area: 15 x 60 mm White No. of markers: 40 40 pc(s)

Item no:282862

CC 15/60 O4MM MC NE WS

PA66

Cable tie

60 mm

15 mm

Device markers

Weidmüller 1072640000 CC 15/60 MC NE GR Device markers Fitting type: Clip Writing area: 15 x 60 mm Grey No. of markers: 40 40 pc(s)

Item no:284576

CC 15/60 MC NE GR

PA66

Clip

60 mm

15 mm

Device markers

Weidmüller 1072650000 CC 15/60 K MC NE GR Device markers Fitting type: Clip Writing area: 15 x 60 mm Grey No. of markers: 40 40 pc(s)

Item no:284579

CC 15/60 K MC NE GR

PA66

Clip

60 mm

15 mm

Device markers

Weidmüller 1072670000 CC 30/60 MC NE GR Device markers Fitting type: Clip Writing area: 30 x 60 mm Grey No. of markers: 30 30 pc(s)

Item no:284583

CC 30/60 MC NE GR

PA66

Clip

60 mm

30 mm

Device markers

Weidmüller 1072680000 CC 30/60 K MC NE GR Device markers Fitting type: Clip Writing area: 30 x 60 mm Grey No. of markers: 30 30 pc(s)

Item no:284611

CC 30/60 K MC NE GR

PA66

Clip

60 mm

30 mm

Device markers

Weidmüller 1076970000 CC 15/49 MC NE GE Device markers Fitting type: Clip Writing area: 15 x 49 mm Yellow No. of markers: 40 40 pc(s)

Item no:286294

CC 15/49 MC NE GE

PA66

Clip

49 mm

15 mm

Device markers

Weidmüller 1078320000 CC 30/60 K MC NE GE Device markers Fitting type: Clip Writing area: 30 x 60 mm Yellow No. of markers: 30 30 pc(s)

Item no:286515

CC 30/60 K MC NE GE

PA66

Clip

60 mm

30 mm

Device markers

Weidmüller 1079530000 CC 15/17 MC NE GR Device markers Fitting type: Clip Writing area: 15 x 17 mm Grey No. of markers: 80 80 pc(s)

Item no:286693

CC 15/17 MC NE GR

PA66

Clip

17 mm

15 mm

Device markers

Weidmüller 1079540000 CC 15/17 K MC NE GR Device markers Fitting type: Clip Writing area: 15 x 17 mm Grey No. of markers: 80 80 pc(s)

Item no:286708

CC 15/17 K MC NE GR

PA66

Clip

17 mm

15 mm

Device markers

Weidmüller 1079550000 CC 15/27 MC NE GR Device markers Fitting type: Clip Writing area: 15 x 27 mm Grey No. of markers: 80 80 pc(s)

Item no:286721

CC 15/27 MC NE GR

PA66

Clip

27 mm

15 mm

Device markers

Documents & Downloads

Datasheet

Datasheet 353354 Weidmüller 1631640003 LOGIM.-KH. ES Badge Fitting type: Screw, Pivet Writing area: 90 x 90 mm Beige No. of markers: 20 2

User & Safety Instructions

User & Safety Instructions 353354 Weidmüller 1631640003 LOGIM.-KH. ES Badge Fitting type: Screw, Pivet Writing area: 90 x 90 mm Beige No. of markers: 20 2

Description

With their razor-sharp printed writing area in different sizes, the multi-functional clip card engraved geratemarkierern at eye level as the ideal alternative for the labelling of electrical installations and switching systems, operate the entire spectrum of fixing methods. From the simple device labelling on the identification of pipes, valves, motors or lamps in accordance with DIN V VDE V 0108 (Part 100) to the type plate creation including colored company logo.

This text is machine translated.
