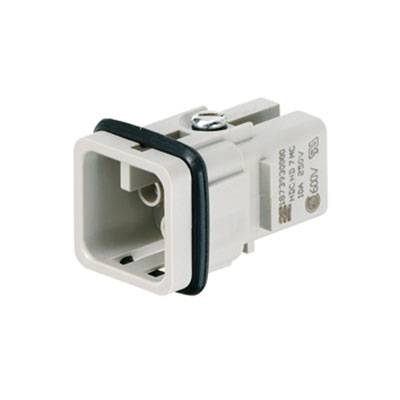

Weidmüller 1650570000 Pin inset RockStar® HDC HD 7 Crimp 1 pc(s)
EAN:
Part number:
Item no:
Product type
Pin inset
Connection
Crimp
Series
RockStar® HDC HD
Features
copper-plated
Total no. of pins
7
Datasheet (PDF)
Highlights & Details
Pin insert
- HDC HD 7MC
Technical specifications
- Net weight: 10 g
- Limit temperature: -40 °C ... 125 °C
- Insulation resistance: 1010 Ω
- Pollution degree: 3
- Width: 21 mm
- Height: 34 mm
- Depth: 21 mm
- Length Socket: 21 mm
- Size: 1
- Series: HD
- Rated voltage (DIN EN 61984): 250 V
- Rated voltage according to UL/CSA: 600 V AC/DC
- Rated surge voltage (DIN EN 61984): 4 kV
- Rated current (DIN EN 61984): 10 A
- flammability class according to UL 94: V-0
- Forward resistance: ≤ 4mΩ
- Insulation material: PC glass fiber reinforced (UL listed and railway qualified)
- Insulation material group: IIIA
- Plug cycles AG: ≥ 500
- Plug cycles Au: ≥ 500
- Connection type PE: Crimp connection
- Wire cross-section AWG (PE), max.: AWG 14
- Wire cross-section AWG (PE), min.: AWG 20
- Wire stripping length Rated connection: 8 mm
- Height Plug: 34 mm
- Product type
Pin inset
- Series
RockStar® HDC HD
- Features
copper-plated
- Connection
Crimp
- Total no. of pins
7
- Core cross section (max.)
2.5 mm²
- Number of pins
7
- Core cross section (min.)
0.14 mm²
- Content
1 pc(s)
21
34 mm
21 mm
250 V
7
Pin
-40-125 °C
V0
4 kV
Crimp connection
Silver
3
0.5-2.5 mm²
0.5-2.5 mm²
0.5-2.5 mm²
0.14-2.5 mm²
TRUE
Other copper alloys
10 A
Thermoplastic
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 202810 Weidmüller 1650570000 Pin inset RockStar® HDC HD 7 Crimp 1 pc(s)
User & Safety Instructions
User & Safety Instructions 202810 Weidmüller 1650570000 Pin inset RockStar® HDC HD 7 Crimp 1 pc(s)
Description
Pin insert. HDC-Use, pin, 250 V, 10 A, number of poles: 7, crimp connection, size: 1. The HD series has a high contact density and is thus ideally suited for signal processing. The Conductor Connection level is designed as a crimp contact. For decades, the proven crimp connection technique in use. Crimp contacts are not included in the delivery of inserts. Number of pins: 7, Rated current 10 A, rated voltage: 42 V/250V, rated voltage according to UL/CSA: 600 V AC/DC. Crimp connection.
