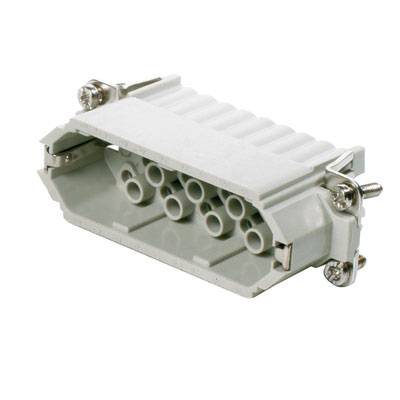

Weidmüller 1650810000 Pin inset RockStar® HDC HD 25 + PE Crimp 1 pc(s)
EAN:
Part number:
Item no:
Product type
Pin inset
Connection
Crimp
Series
RockStar® HDC HD
Features
copper-plated
Total no. of pins
25 + PE
Datasheet (PDF)
Highlights & Details
Pin insert
- HDC HD 25 MC
Technical specifications
- Net weight: 34 g
- Temperature limit: -40 °C ... 125 °C
- Insulation resistance: 1010 Ω
- Pollution degree: 3
- Width: 23 mm
- Height: 35 mm
- Depth: 73 mm
- Length Socket: 73 mm
- Size: 5
- Series: HD
- Rated voltage (DIN EN 61984): 250 V
- Rated voltage according to UL/CSA: 600 V AC/DC
- Rated surge voltage (DIN EN 61984): 4 kV
- Rated current (DIN EN 61984): 10 A
- flammability class according to UL 94: V-0
- Forward resistance: ≤ 4mΩ
- Insulation material: PC glass fiber reinforced (UL listed and railway qualified)
- Insulation material group: IIIA
- Plug cycles AG: ≥ 500
- Plug cycles Au: ≥ 500
- Connection type PE: Screw connection
- conductor cross-section AWG (PE), max.: AWG 14
- Wire cross-section AWG (PE), min.: AWG 20
- Wire stripping length Rated connection: 8 mm
- PE connection: 10 mm
- Tightening torque max. PE connection: 1.5 Nm
- Tightening torque min. PE connection: 1.2 Nm
- Mounting screw: M 4
- Cross-head blade dimensions: GR. PZ1
- Slotted blade dimensions (PE connection): SD 0.6 x 3.5, SD 0.8 x 4.0
- Height of plug: 35 mm
- Product type
Pin inset
- Series
RockStar® HDC HD
- Features
copper-plated
- Connection
Crimp
- Total no. of pins
25 + PE
- Core cross section (max.)
2.5 mm²
- Number of pins
25
- Core cross section (min.)
0.14 mm²
- Content
1 pc(s)
- Leading contact (PE)
Yes
23
35 mm
73 mm
250 V
25
Pin
-40-125 °C
V0
4 kV
Crimp connection
Silver
3
0.5-2.5 mm²
0.5-2.5 mm²
0.5-2.5 mm²
0.14-2.5 mm²
TRUE
Other copper alloys
10 A
Thermoplastic
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 202829 Weidmüller 1650810000 Pin inset RockStar® HDC HD 25 + PE Crimp 1 pc(s)
User & Safety Instructions
User & Safety Instructions 202829 Weidmüller 1650810000 Pin inset RockStar® HDC HD 25 + PE Crimp 1 pc(s)
Description
Pin insert. HDC-Use, pin, 250 V, 10 A, number of poles: 25, crimp connection, size: 5. The HD series has a high contact density and is thus ideally suited for signal processing. The Conductor Connection level is designed as a crimp contact. For decades, the proven crimp connection technique in use. Crimp contacts are not included in the delivery of inserts. Number of poles: 25, rated current 10 A, rated voltage 250 V, rated voltage according to UL/CSA: 600 V AC/DC. Crimp connection.
