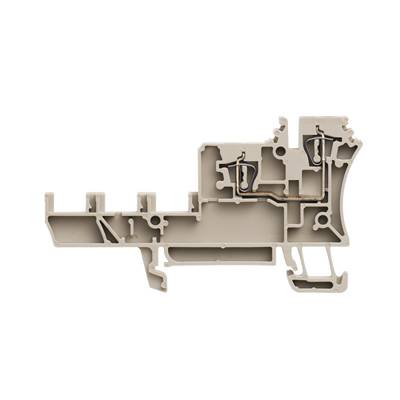

Weidmüller 1652010000 Proximity switch/actuator terminal Pull spring Dark beige 100 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Proximity switch/actuator terminal
Connection
Pull spring
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (max.)
2.5 mm²
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
Proximity switch/actuator terminal
- Connection
Pull spring
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
2.5 mm²
- Factory colour
Dark beige
- Manufacturer part #
1652010000
- Content
100 pc(s)
- Industrial packaging
Yes
- Type
ZIA 1.5/4L-1S
- Dim
(L x W x H) 81.5 x 5.08 x 45.5 mm
- Width
5.08 mm
- Height
45.5 mm
- Length
81.5 mm
- RoHS-compliant
Yes
- Weight
5.96 g
- Connector colour
Dark beige
- Type
ZIA 1.5/4 L-1S
DIN rail (top hat rail) 35 mm
Beige
5.08
81.5 mm
45.5 mm
250 V
-50-120 °C
V0
TRUE
Spring clamp connection
Other
1
2
FALSE
0.5-2.5 mm²
0.5-1.5 mm²
0.5-2.5 mm²
Thermoplastic
17.5 A
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 354233 Weidmüller 1652010000 Proximity switch/actuator terminal Pull spring Dark beige 100 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 354233 Weidmüller 1652010000 Proximity switch/actuator terminal Pull spring Dark beige 100 pc(s) Piece
Description
Initiator, Actuator terminal block. Z-series, rated cross-section: 1.5 mm², spring-cage connection, Wemid, dark beige. The basis of this modular system are the modular design of the individual modules of the rail with their built-in cross connection. On the one side, you will find the Socket contact, on the other side of the pin contact. By modular disc design can be variable, depending on the application distribution boards. Carrier for this module combinations are the basic elements on TS 35 mounting rails may be fitted.
