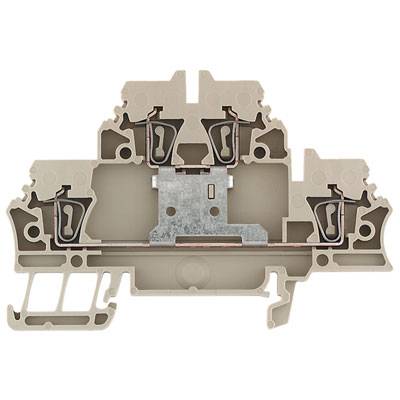

Weidmüller 1689990000-50 Dual port terminal Pull spring Dark beige 50 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Dual port terminal
Connection
Pull spring
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (max.)
2.5 mm²
Datasheet (PDF)
Highlights & Details
Double-level terminal block
- ZDK 2.5V
Technical specifications
- Packaging type
Piece
- Product type
Dual port terminal
- Features
+ test option
- Connection
Pull spring
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
2.5 mm²
- No. of rows
2
- Factory colour
Dark beige
- Manufacturer part #
1689990000-50
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
ZDK 2.5V
- Dim
(L x W x H) 79.5 x 5.1 x 53 mm
- Width
5.1 mm
- Height
53 mm
- Length
79.5 mm
- RoHS-compliant
Yes
- Weight
10.56 g
- Type
ZDK 2.5V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 354983 Weidmüller 1689990000-50 Dual port terminal Pull spring Dark beige 50 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 354983 Weidmüller 1689990000-50 Dual port terminal Pull spring Dark beige 50 pc(s) Piece
Description
Double-level terminal block. Z-Series terminal with spring-cage connection, nominal cross-section: 2.5 mm², spring-cage connection, Wemid, dark beige. Terminal blocks in spring technology, the Z-series, are specifically tailored to customer requirements: Low available space, Spacious marking surfaces, integrated test point, cross-connectivity within the Z-series and to other Weidmüller terminal block ranges. The Z-series terminals have a large clamping range and up to two cross-connection channels. With standard plug-in cross-connectors, potentials can be distributed over any number of terminals.
