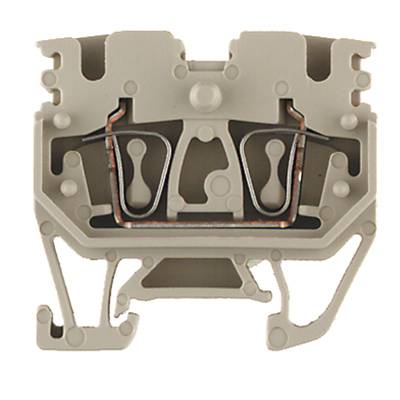

Weidmüller 1712750000 Serial continuity Pull spring Dark beige 100 pc(s)
EAN:
Part number:
Item no:
Product type
Serial continuity
Connection
Pull spring
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (max.)
4 mm²
Content
100 pc(s)
Datasheet (PDF)
Highlights & Details
Continuity series terminal
- ZDUB 2.5-2/2AN/15
Our service for you
Technical specifications
- Product type
Serial continuity
- Connection
Pull spring
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
4 mm²
- Factory colour
Dark beige
- Manufacturer part #
1712750000
- Content
100 pc(s)
- Industrial packaging
Yes
- Type
ZDUB 2.5-2/2AN/15
- Dim
(L x W x H) 33.5 x 5.1 x 31 mm
- Width
5.1 mm
- Height
31 mm
- Length
33.5 mm
- RoHS-compliant
Yes
- Weight
3.97 g
- Type
ZDUB 2.5-2/2 ON/15
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 355884 Weidmüller 1712750000 Serial continuity Pull spring Dark beige 100 pc(s)
User & Safety Instructions
User & Safety Instructions 355884 Weidmüller 1712750000 Serial continuity Pull spring Dark beige 100 pc(s)
Description
Continuity series terminal. Z-Series terminal with spring-cage connection, nominal cross-section: 2.5 mm², spring-cage connection, Wemid, dark beige. These small terminal family in spring-cage connection method allows an individual block formation with 2- and 4-pole terminals. Individual blocks are from central terminals and end plate for the open side together. In the screw fastening is the first center terminals as well as the end plate by endklemmen for attachment. In the case of the other mounting variants are center terminals with mounting possibility with into the block has been installed or a mounting base (MOFU) for rail mounting.
This text is machine translated.
