Buy Weidmüller 1716630000 SM-H 27/18 SW Badge Fitting type: Adhesive Writing area: 18 x 27 mm Black No. of markers: 25 25 pc

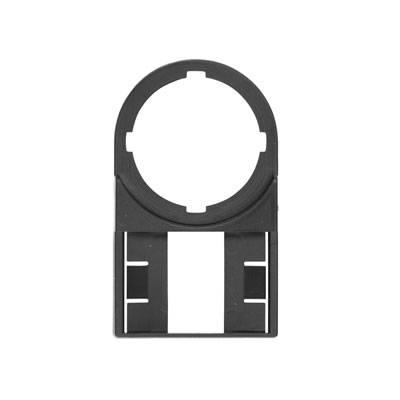

Black and white illustration of a round adapter ring, suitable for lamps or technical devices, with a rectangular base.

Product type

Badge

Fitting type

Adhesive

Writing area length

18 mm

Writing area width

27 mm

Type

SM-H 27/18 SW

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Depth: 3.3 mm
Net weight: 0.92 g
Flammability class according to UL 94: V-2
Material color according to resistance code: 0
Diameter: 22 mm

Type: SM-H 27/18 SW

Product type: Badge

Fitting type: Adhesive

Writing area length: 18 mm

Writing area width: 27 mm

Writing area: 18 x 27 mm

Material: PA66

Suited for series: Devices and appliances
Universal usage
22mm switches

Features: UL94 flammability rating

Series: SM

Min. temperature: -40 °C

Max. temperature: +100 °C

Factory colour: Black

No. of markers: 25

Dim: (L x W x H) 48 x 27 x 48 mm

Industrial packaging: Yes

Content: 25 pc(s)

Width: 27 mm

Height: 48 mm

Length: 48 mm

RoHS-compliant: Yes

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Type

Material

Writing area width

Writing area length

Product type

Device markers, MultiCard, 18 x 27 mm, Polyamide 66, Colour: Grey

Item no:280548

SM 27/18 MC NE GR

PA66

27 mm

18 mm

Device markers

Device markers, MultiCard, 22 x 22 mm, Polyamide 66, Colour: Grey

Item no:280549

SM 22/22 K MC NE GR

PA66

22 mm

Device markers

Device markers, MultiCard, 12,5 x 27 mm, Polyamide 66, Colour: Grey

Item no:281149

SM 27/12.5 K MC NE GR

PA66

27 mm

12.50 mm

Device markers

Weidmüller 1073340000 SM 27/18 K MC NE GR Device markers Fitting type: Adhesive Writing area: 18 x 27 mm Grey No. of markers: 80 80 pc(s)

Item no:284837

SM 27/18 K MC NE GR

PA66

27 mm

18 mm

Device markers

Weidmüller 1079470000 SM 27/8 MC NE GR Device markers Fitting type: Adhesive Writing area: 8 x 27 mm Grey No. of markers: 80 80 pc(s)

Item no:286594

SM 27/8 MC NE GR

PA66

27 mm

8 mm

Device markers

Weidmüller 1079480000 SM 27/8 K MC NE GR Device markers Fitting type: Adhesive Writing area: 8 x 27 mm Grey No. of markers: 80 80 pc(s)

Item no:286631

SM 27/8 K MC NE GR

PA66

27 mm

8 mm

Device markers

Weidmüller 1079490000 SM 27/12.5 MC NE GR Device markers Fitting type: Adhesive Writing area: 12.50 x 27 mm Grey No. of markers: 80 80 pc(s)

Item no:286670

SM 27/12.5 MC NE GR

PA66

27 mm

12.50 mm

Device markers

Weidmüller 1079510000 SM 27/27 MC NE GR Device markers Fitting type: Adhesive Writing area: 27 x 27 mm Grey No. of markers: 60 60 pc(s)

Item no:286679

SM 27/27 MC NE GR

PA66

27 mm

Device markers

Weidmüller 1079520000 SM 27/27 K MC NE GR Device markers Fitting type: Adhesive Writing area: 27 x 27 mm Grey No. of markers: 60 60 pc(s)

Item no:286683

SM 27/27 K MC NE GR

PA66

27 mm

Device markers

Weidmüller 1131810000 SM 27/12.5 K MC NE GE Device markers Fitting type: Adhesive Writing area: 12.50 x 27 mm Yellow No. of markers: 80 80 pc(s)

Item no:307003

SM 27/12.5 K MC NE GE

PA66

27 mm

12.50 mm

Device markers

Documents & Downloads

Datasheet

Datasheet 356042 Weidmüller 1716630000 SM-H 27/18 SW Badge Fitting type: Adhesive Writing area: 18 x 27 mm Black No. of markers: 25 25 pc

User & Safety Instructions

User & Safety Instructions 356042 Weidmüller 1716630000 SM-H 27/18 SW Badge Fitting type: Adhesive Writing area: 18 x 27 mm Black No. of markers: 25 25 pc

Description

SM is a multi-card markers for the identification of Command and warning devices. The signs are locked in the holder or with the pre-applied adhesive film. With the labeling systems PrintJet PRO, Plotter MCP Plus, MCP Basic or MC Mobilo can be used to create individual labels.
· Demand-driven and fast in-house production
· No storage of expensive standard signs required
· High-resistant print quality with the PrintJet as engraving replacement
· For extreme demands, we recommend the protective film ETO SM
· Holder can be used for pushbutton Ø 22 mm from Siemens, ABB, Moeller and telemecanique

This text is machine translated.
