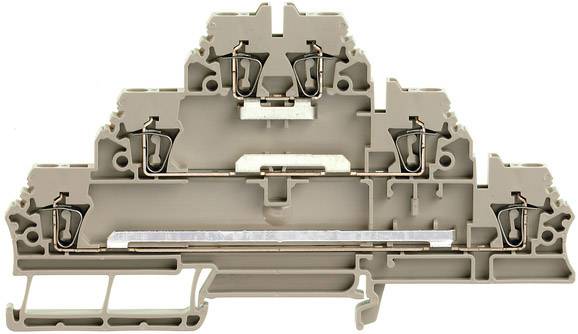

Weidmüller 1718360000 Triple port continuity 5.10 mm Pull spring Beige 50 pc(s)
EAN:
Part number:
Item no:
Product type
Triple port continuity
Connection
Pull spring
Cross section (flexible) (max.)
1.50 mm²
Cross section (inflexible) (max.)
1.50 mm²
Nominal current - rounded value
20 A
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 3.45 / piece)
€ 172.26
plus VAT.
14-day return policy included
Highlights & Details
Multi-level terminal block, spring-cage connection, 2.5 mm², 400 V, 20 A, Number of floors: 3, dark beige
Our service for you
Technical specifications
- Product type
Triple port continuity
- Connection
Pull spring
- Cross section (flexible) (min.)
0.50 mm²
- Cross section (flexible) (max.)
1.50 mm²
- Cross section (inflexible) (min.)
0.50 mm²
- Cross section (inflexible) (max.)
1.50 mm²
- AWG (min.)
26
- AWG max.
12
- Clamp width
5.10 mm
- No. of rows
3
- Pins per row
2
- Number of pins
6
- Factory colour
Beige
- Nominal current
20 A
- Nominal current - rounded value
20 A
- Nominal voltage
400 V
- Stripping length (max.)
10 mm
- Manufacturer part #
1718360000
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
ZDLD 2.5-2
- Dim
(L x W x H) 69 x 5.10 x 119.50 mm
- Width
5.10 mm
- Height
119.50 mm
- Length
69 mm
- RoHS-compliant
Yes
- Flammability rating
V0
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1694498 Weidmüller 1718360000 Triple port continuity 5.10 mm Pull spring Beige 50 pc(s)
User & Safety Instructions
User & Safety Instructions 1694498 Weidmüller 1718360000 Triple port continuity 5.10 mm Pull spring Beige 50 pc(s)
Description
Terminal for space-saving connection or the connection of wires, wires and cables with permanently secure contact. Hardened steel for the mechanical forces and high-quality copper with tin coating provides for best conductivity.
