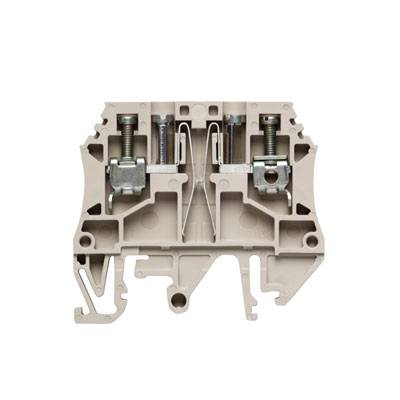

Weidmüller 1754960000 Serial test terminal Screws Dark beige 50 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Serial test terminal
Connection
Screws
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
6 mm²
Datasheet (PDF)
Highlights & Details
Checks racing series terminal
- WTL 4
Our service for you
Technical specifications
- Packaging type
Piece
- Product type
Serial test terminal
- Features
with screw connection
- Connection
Screws
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
6 mm²
- Factory colour
Dark beige
- Manufacturer part #
1754960000
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
WTL 4
- Dim
(L x W x H) 61.3 x 6.1 x 39.9 mm
- Width
6.1 mm
- Height
39.9 mm
- Length
61.3 mm
- RoHS-compliant
Yes
- Weight
10.96 g
- Connector colour
Dark beige
- Type
WTL 4
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 357506 Weidmüller 1754960000 Serial test terminal Screws Dark beige 50 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 357506 Weidmüller 1754960000 Serial test terminal Screws Dark beige 50 pc(s) Piece
Description
Checks racing series terminal. In order to measure the electrical energy, appropriate measuring devices. A wrong connection during maintenance work can destroy a current transformer. Instrument isolating terminals are a safe method to solve this problem. These terminals allow optimum implementation of all the major circuits for measuring current, voltage and power. The various power converter circuits - e.g. for the exchange of measuring instruments or electricity meters - can be implemented.
