Weidmüller 1768000000 Motor terminal Pull spring Dark beige 25 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Motor terminal
Connection
Pull spring
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
4 mm²
Datasheet (PDF)
Highlights & Details

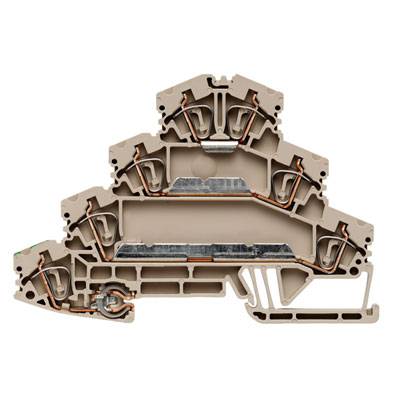

Motor connection terminal
- ZMAK 2.5
Technical specifications
- Packaging type
Piece
- Product type
Motor terminal
- Features
+ tapping point
- Connection
Pull spring
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
4 mm²
- Factory colour
Dark beige
- Manufacturer part #
1768000000
- Content
25 pc(s)
- Industrial packaging
Yes
- Type
ZMAK 2.5
- Dim
(L x W x H) 102 x 5.1 x 69.5 mm
- Width
5.1 mm
- Height
69.5 mm
- Length
102 mm
- RoHS-compliant
Yes
- Weight
22.38 g
- Connector colour
Dark beige
- Type
ZMAK 2.5
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 357993 Weidmüller 1768000000 Motor terminal Pull spring Dark beige 25 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 357993 Weidmüller 1768000000 Motor terminal Pull spring Dark beige 25 pc(s) Piece
Description
Motor connection terminal. Z-Series terminal with spring-cage connection, nominal cross-section: 2.5 mm², spring-cage connection, Wemid, dark beige. Terminal blocks in spring technology, the Z-series, are specifically tailored to customer requirements: Low available space, Spacious marking surfaces, integrated test point, cross-connectivity within the Z-series and to other Weidmüller terminal block ranges. The Z-series terminals have a large clamping range and up to two cross-connection channels. With standard plug-in cross-connectors, potentials can be distributed over any number of terminals.
