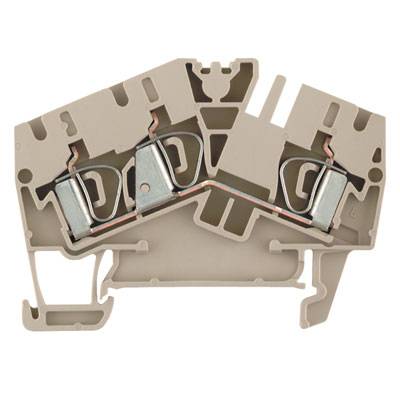

Weidmüller 1770870000 Serial continuity Pull spring Orange 100 pc(s)
EAN:
Part number:
Item no:
Product type
Serial continuity
Connection
Pull spring
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
6 mm²
Content
100 pc(s)
Datasheet (PDF)
Highlights & Details
Continuity series terminal
Our service for you
Technical specifications
- Product type
Serial continuity
- Features
+ tapping point
- Connection
Pull spring
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
6 mm²
- Factory colour
Orange
- Manufacturer part #
1770870000
- Content
100 pc(s)
- Industrial packaging
Yes
- Type
ZDU 4-2/3AN OR
- Dim
(L x W x H) 61.5 x 6.1 x 45.5 mm
- Width
6.1 mm
- Height
45.5 mm
- Length
61.5 mm
- RoHS-compliant
Yes
- Weight
10.18 g
- Connector colour
Orange
- Type
ZDU 4-2/3 or
Documents & Downloads
Datasheet
Datasheet 358170 Weidmüller 1770870000 Serial continuity Pull spring Orange 100 pc(s)
User & Safety Instructions
User & Safety Instructions 358170 Weidmüller 1770870000 Serial continuity Pull spring Orange 100 pc(s)
Description
Continuity series terminal. Z-series, rated cross section: 4 mm², spring-cage connection, Wemid, orange. Terminal blocks in spring technology, the Z-series, are specifically tailored to customer requirements: Low available space, Spacious marking surfaces, integrated test point, cross-connectivity within the Z-series and to other Weidmüller terminal block ranges. The Z-series terminals have a large clamping range and up to two cross-connection channels. With standard plug-in cross-connectors, potentials can be distributed over any number of terminals.
