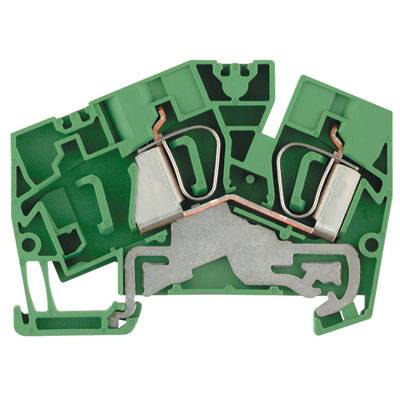

Weidmüller 1771370000 PG terminal Pull spring Green-yellow 50 pc(s)
EAN:
Part number:
Item no:
Product type
PG terminal
Connection
Pull spring
Cross section (flexible) (max.)
10 mm²
Cross section (inflexible) (max.)
10 mm²
Content
50 pc(s)
Datasheet (PDF)
Highlights & Details
Earth conductor terminal
- ZPE 6-2/2AN
Our service for you
Technical specifications
- Product type
PG terminal
- Features
+ tapping point
- Connection
Pull spring
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
10 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
10 mm²
- Factory colour
Green-yellow
- Manufacturer part #
1771370000
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
ZPE 6-2/2AN
- Dim
(L x W x H) 68 x 8.1 x 49.19 mm
- Width
8.1 mm
- Height
49.19 mm
- Length
68 mm
- RoHS-compliant
Yes
- Weight
21.9 g
- Connector colour
Green-yellow
- Type
Cpe 6-2/2
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 358178 Weidmüller 1771370000 PG terminal Pull spring Green-yellow 50 pc(s)
User & Safety Instructions
User & Safety Instructions 358178 Weidmüller 1771370000 PG terminal Pull spring Green-yellow 50 pc(s)
Description
Earth conductor terminal. Z-series terminal ground terminal, rated cross-section: 6 mm², spring-cage connection, Wemid, green/yellow. Terminal blocks in spring technology, the Z-series, are specifically tailored to customer requirements: Low available space, Spacious marking surfaces, integrated test point, cross-connectivity within the Z-series and to other Weidmüller terminal block ranges. The Z-series terminals have a large clamping range and up to two cross-connection channels.
