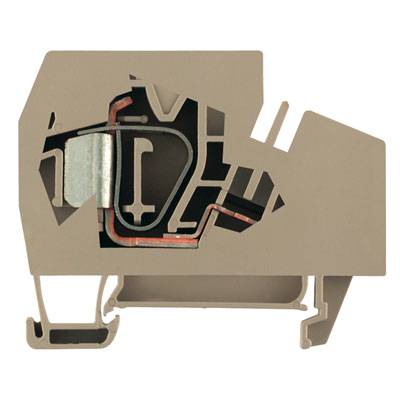

Weidmüller 1772940000 Feeder terminal Pull spring Dark beige 20 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Feeder terminal
Connection
Pull spring
Cross section (flexible) (max.)
16 mm²
Cross section (inflexible) (max.)
10 mm²
Datasheet (PDF)
Highlights & Details
Power connection terminal
Our service for you
Technical specifications
- Packaging type
Piece
- Product type
Feeder terminal
- Features
+ test option
- Connection
Pull spring
- Cross section (flexible) (min.)
1.5 mm²
- Cross section (flexible) (max.)
16 mm²
- Cross section (inflexible) (min.)
1.5 mm²
- Cross section (inflexible) (max.)
10 mm²
- Factory colour
Dark beige
- Manufacturer part #
1772940000
- Content
20 pc(s)
- Industrial packaging
Yes
- Type
ZEI 16-2/1AN
- Dim
(L x W x H) 61.5 x 14 x 50.5 mm
- Width
14 mm
- Height
50.5 mm
- Length
61.5 mm
- RoHS-compliant
Yes
- Weight
28.3 g
- Connector colour
Dark beige
- Type
ZEI 16-2/1
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 358241 Weidmüller 1772940000 Feeder terminal Pull spring Dark beige 20 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 358241 Weidmüller 1772940000 Feeder terminal Pull spring Dark beige 20 pc(s) Piece
Description
Feed-in terminal. Z-series, rated cross-section: 16 mm², spring-cage connection, Wemid, dark beige. Terminal blocks in spring technology, the Z-series, are specifically tailored to customer requirements: Low available space, Spacious marking surfaces, integrated test point, cross-connectivity within the Z-series and to other Weidmüller terminal block ranges. The Z-series terminals have a large clamping range and up to two cross-connection channels. With standard plug-in cross-connectors, potentials can be distributed over any number of terminals.
