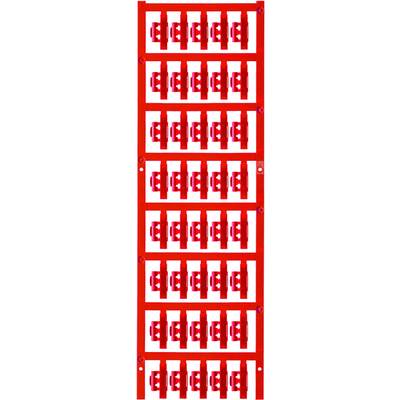

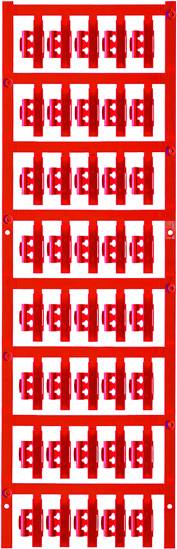

Weidmüller 1779080003 SFC 1/21 NEUTRAL RT Badge Fitting type: Clip Writing area: 4.10 x 21 mm Red No. of markers: 200 20
EAN:
Part number:
Item no:
Product type
Badge
Fitting type
Clip
Writing area length
4.10 mm
Writing area width
21 mm
Type
SFC 1/21 NEUTRAL RT
Datasheet (PDF)
Highlights & Details
Character holder Slim Fix
Our service for you
Technical specifications
- Depth: 7 mm
- Net weight: 0.53 g
- flammability class according to UL 94: V-2
- Material color according to resistance code: 2
- conductor cross-section, max.: 2.5 mm²
- conductor cross-section, min.: 0.75 mm²
- Type
SFC 1/21 NEUTRAL RT
- Product type
Badge
- Fitting type
Clip
- Writing area length
4.10 mm
- Writing area width
21 mm
- Writing area
4.10 x 21 mm
- Material
PA66
- Suited for series
Single wires
- Features
UL94 flammability rating
Halogen-free
- Series
SFC
- Min. temperature
-40 °C
- Max. temperature
+100 °C
- Suitable for outside Ø (min.)
2 mm
- Suitable for outside Ø (max.)
3.5 mm
- Factory colour
Red
- No. of markers
200
- Dim
(L x W x H) 21 x 5.8 x 21 mm
- Industrial packaging
Yes
- Content
200 pc(s)
- Width
5.8 mm
- Height
21 mm
- Length
21 mm
- RoHS-compliant
Yes
- Depth
5 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 194068 Weidmüller 1779080003 SFC 1/21 NEUTRAL RT Badge Fitting type: Clip Writing area: 4.10 x 21 mm Red No. of markers: 200 20
User & Safety Instructions
User & Safety Instructions 194068 Weidmüller 1779080003 SFC 1/21 NEUTRAL RT Badge Fitting type: Clip Writing area: 4.10 x 21 mm Red No. of markers: 200 20
Description
The halogen-free SlimFix clip made of robust polyamide 66 combines two advantages in one product. By the unique clip closure, it can be to each installation time so easily as an open marker install and offers the security of a closed markierers application-oriented.
