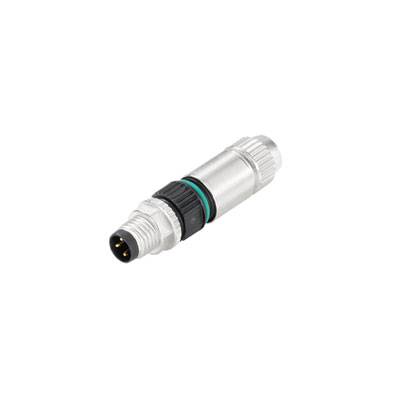

Metallic connector with a black rubber ring and multiple pins, shown against a white background.

Product type

Sensor/actuator connector

Connector type

Plug, straight

Connector standard

Sensor connector

Connection side A

M8 plug, straight

Connection side B

Customisable

Datasheet (PDF)

Unavailable

52 Piece(s)

Show alternatives

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Sensor/Actuator plug connector plug

SAIS-3-IDC M 8 small

Technical specifications

Packaging type: Piece

Type: SAIS-3-IDC M8 SMALL

Product type: Sensor/actuator connector

Connector type: Plug, straight

Connector standard: Sensor connector

Connection side A: M8 plug, straight

Connection side B: Customisable

No. of pins: 3

Nominal voltage: 32 V

Nominal current: 4 A

Nominal current - rounded value: 4 A

Connector cross-section (max.): 0.34 mm²

Cross-section (sensor/actuator wiring): 0.34 mm²

Connection: Cut & Clip

Thread type connection side: M8

Thread type (wiring and installation): M8

Contact material: Tin

Contact surface: Tin

max. cross section: 0.34 mm²

Min. cross section: 0.14 mm²

: IP67

Min. temperature: -25 °C

Max. temperature: +85 °C

Seal type: Screw-on

Manufacturer part #: 1784040001

Content: 1 pc(s)

Cable Ø (max.): 5.4 mm

Cable Ø up to: 3.2 mm

Cable Ø range: 3.2 - 5.4 mm

RoHS-compliant: Yes

: Other

: 32 V

: FALSE

: Pin

: Brass

: Other

: Insulation displacement connection

: Tin

: 3

: Straight

: 0.14-0.14 mm²

: 0.14-0.34 mm²

: IP67

: 4 A

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Connection side B

Type

Connector standard

Nominal current - rounded value

Connection side A

Connector type

No. of pins

Nominal voltage

Thread type connection side

Weidmüller 1784040001 Sensor/actuator connector M8 Plug, straight No. of pins (RJ): 3 1 pc(s) Piece

Item no:203495

This article

Customisable

SAIS-3-IDC M8 SMALL

Sensor connector

4 A

M8 plug, straight

Plug, straight

32 V

Sockets prefabricated to customer spec., Plugs prefabricated to customer spec., M12, pin, 90°

Item no:195551

Customisable

SAISW-5/9-(KV)

Sensor connector

4 A

M12 plug, right angle

Plug, right angle

125 V

M12

Sockets prefabricated to customer spec., Plugs prefabricated to customer spec., M12, pin, straight

Item no:195554

Customisable

SAIS-5/9-(KV)

Sensor connector

4 A

M12 plug, straight

Plug, straight

125 V

M12

Sockets prefabricated to customer spec., Plugs prefabricated to customer spec., M8, pin, straight

Item no:195582

Customisable

SAISM-M8-3P-(IF)

Sensor connector

4 A

M8 plug, straight

Plug, straight

60 V

Sockets prefabricated to customer spec., Plugs prefabricated to customer spec., M8, pin, straight

Item no:195583

Customisable

SAISM-M8-4P-(IF)

Sensor connector

4 A

M8 plug, straight

Plug, straight

30 V

Sensor/actuator line, Connecting line, M8 / M12, No. of poles: 3, 2 m, pin, straight - socket, 90°, shielded: No, LED: Yes, Sheath material: PUR, Halogen: No

Item no:195871

M12 socket, right angle

SAIL-M8GM12W-3L2.0U

Sensor connector

4 A

M12 socket, right angle

Plug, straightSocket, right angle

24 V

M12

Sensor/actuator line, Connecting line, M8 / M12, No. of poles: 3, 5 m, pin, straight - socket, 90°, shielded: No, LED: Yes, Sheath material: PUR, Halogen: No

Item no:195872

M12 socket, right angle

SAIL-M8GM12W-3L5.0U

4 A

M12 socket, right angle

Plug, straightSocket, right angle

24 V

M12

Weidmüller 1060730000 Sensor/actuator splitter/adapter M12 Adapter, Y-shaped No. of pins (RJ): 4 1 pc(s)

Item no:196302

M12 socket, straightM12 socket, straight

SAI-Y-4S-M12/M12

Sensor connector

4 A

M12 plug, straight

Adapter, Y-shaped

24 V

M12

Weidmüller 1108791000 Sensor/actuator connector (pre-fab) M12 Plug, straight 10 m No. of pins (RJ): 5 1 pc(s)

Item no:200490

M12 plug, straight

SAIP-M12BW-5-10U

Sensor connector

4 A

Cable, open end

Plug, straight

125 V

M12

Weidmüller 1118910000 Sensor/actuator connector M12 Plug, straight No. of pins (RJ): 8 1 pc(s) Piece

Item no:200623

Customisable

SAISM-8/11S-M12

2 A

M12 plug, straight

Plug, straight

60 V

M12

Documents & Downloads

Datasheet

Datasheet 203495 Weidmüller 1784040001 Sensor/actuator connector M8 Plug, straight No. of pins (RJ): 3 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 203495 Weidmüller 1784040001 Sensor/actuator connector M8 Plug, straight No. of pins (RJ): 3 1 pc(s) Piece

Description

Sensor/Actuator plug connector plug. M8, pin, straight. Often in today's world, individual cable lengths are required. In order to meet this requirement, Weidmüller offers a broad portfolio of connectors for free assembly. Plugs and sockets for free packing for M8, M12, M16 and 7/8" connectors are very robust and, for example, for mechanical engineering. The M8 circular connector are particularly suitable for applications with limited space. The insulation displacement terminal connection is characterized by a fast and easy to assemble. Due to this technology the head, without stripping and crimping, directly into the plug is inserted. Furthermore, he has a high level of functional safety.

This text is machine translated.
